Transmission, Removing: Procedure
Observe general notes. Refer to GENERAL INFORMATION .
Follow the rules for clean working conditions. Refer to CLEAN WORKING CONDITIONS .
General repair instructions. Refer to GENERAL REPAIR INFORMATION .
When installing, bring all cable ties back to same positions.
-- Move the selector lever into "P".
-- Press the button on the electro-mechanical parking brake to activate it.
-- Turn off the ignition.
-- Remove the battery tray -1-. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

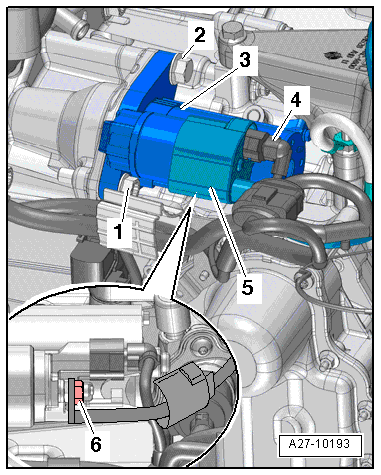

-- Removing starter -3-. Refer to STARTER, REMOVING AND INSTALLING .
There is a risk of destroying the control module (Mechatronic) with electrostatic discharge.
- Do not touch contacts in transmission connector with hands.
-- To electrostatically discharge, touch the ground (without glove).
-- Turn the twist lock counter-clockwise in direction of -arrow- and disconnect the connector -1- for the DSG Transmission Mechatronic -J743-
-- Remove the subframe -9- and steering gear. Refer to SUBFRAME WITHOUT STEERING GEAR, REMOVING AND INSTALLING .
-- Clamp off coolant hoses on transmission oil cooler with :3094 .
-- Loosen the hose clamps -arrows-, remove the coolant hoses from the transmission fluid cooler.
-- Seal the open lines and connections with clean plugs from the :VAS6122 .
-- Remove the nuts -arrows-, and remove the bracket from the oil pan.
The threaded bolts are welded to the front of the oil pan.
-- Remove all the bolts in the transmission to engine connection that are accessible from above.
The bolt -3- is located in the opening for the starter.
-- Remove the plenum chamber cover -5-. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

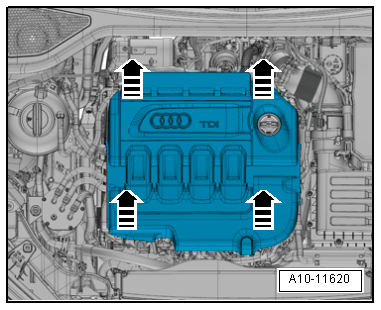

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING [CZRA] or ENGINE COVER, REMOVING AND INSTALLING [CNTC] .
-- Remove caps above the front suspension strut bolted connections.
-- Place the :10-222A/31-1 and :10-222A/31-2 on the suspension strut mounts.
- The ribs -arrow- faces the direction of travel.
-- Position the :10-222A/4 with :T40091/3 as shown in the illustration.
-- Install the additional tools on the left in the engine compartment as illustrated.
-- Attach the left :10-222A/11 carabiner hook to the engine lifting eye -arrow-.
-- Slightly tension the engine/transmission assembly with the spindle, do not lift.
-- Remove the nut -arrow- and remove the ground wire.
The illustration does not show the version in the vehicle.
-- Remove bolts -1 and 2- and remove transmission bracket -A-.
-- Lower the engine/transmission assembly with the :10-222A/11 until dimension -a- is reached between the transmission housing and the transmission mount.
- Dimension -a- = maximum 65 mm.
-- Remove the exhaust pipe. Refer to FRONT MUFFLER, REMOVING AND INSTALLING [CNTC]FRONT MUFFLER, REMOVING AND INSTALLING [CZRA] .
-- Remove the left and right drive axles from the transmission -arrow-. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
-- Tie up the drive axles to the rear.
Pay attention that the drive axle surface protection is not damaged.
AWD Vehicles
-- Remove bolts -1 and 2- and the bevel box bracket.
-- Remove the bolts -arrows- and remove the heat shield -1-.
-- Mark the position of the flexible disc and the bevel box flange shaft to each other for later use.
-- Using a lever to counterhold the triangular flange, remove the driveshaft from the bevel box -arrows-.
-- Press engine/transmission assembly forward slightly and remove driveshaft from bevel box.
Risk of damaging sealing ring -arrow - in driveshaft flange.
- Press driveshaft horizontally as far back and to the right side of the vehicle as possible.
If seal is damaged, driveshaft must be replaced.
All Vehicles
-- Remove the bolts -1- from the cable mounting bracket.
Danger of damaging the selector lever cable.
- Do not bend or kink the selector lever cable.
-- Remove the lock washer -3- -arrow- and then remove the selector lever cable from the transmission.
Ignore -2-.
To remove the S tronic 0D9 transmission the :3282 must be equipped with the :3282/42A .
-- Place the :3282 on the :VAG1383A .
-- Align the arms of the transmission support so that they match up with the holes in the :3282/42A .
-- Install support elements as shown on the :3282/42A The "retaining plate with hole" is used as a front support element.
-- Place the :VAG1383A under the transmission.
- The arrow symbol on the adjusting plate points in the direction of travel.
-- Align the :3282 so that it is parallel to the transmission.
-- Install the :3282/29 in the transmission.
-- Attach the "retaining plate with hole" securely to the transmission -arrow- as shown.
-- Insert the last support element in the transmission as shown.
-- Support the transmission by lifting it from underneath using the :VAG1383A .
-- Remove the remaining bolts from transmission to engine connection.
-- Remove the transmission from the alignment sleeves.
-- Remove the transmission from the engine.
-- Lower the transmission carefully using the :VAG1383A .
-- When lowering, change position of transmission with spindles on :3282 .
