Oil Pan, Removing And Installing: Notes

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Used Oil Collection and Extraction Unit :SMN372500

CAUTION:

This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure.

Mandatory Replacement Parts

Bolts- Oil Pan
Gasket - Oil Pan
O-rings- Mechatronic Connector

Removing

CAUTION:

Danger of causing damage to the transmission.

Do not run engine or tow vehicle with transmission fluid pan removed or without transmission fluid.

NOTE:

Follow the rules for clean working conditions. Refer to CLEAN WORKING CONDITIONS .

General repair instructions. Refer to GENERAL REPAIR INFORMATION .

-- Drain the transmission fluid. Refer to TRANSMISSION FLUID, DRAINING AND FILLING .

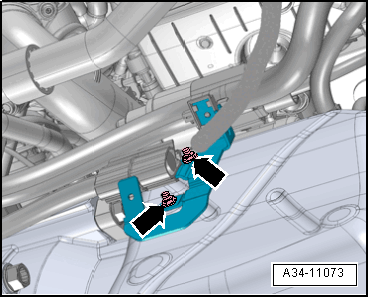

-- Remove the nuts -arrows-, and remove the bracket from the oil pan.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The threaded bolts are welded to the front of the oil pan.

CAUTION:

There is a risk of destroying the control module (Mechatronic) with electrostatic discharge.

Do not touch contacts in transmission connector with hands.

-- To electrostatically discharge, touch the ground (without glove).

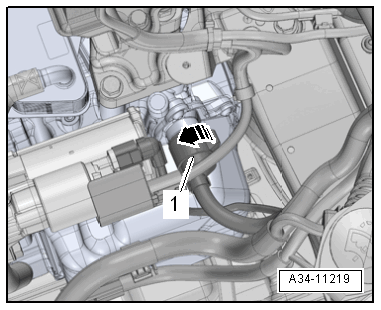

-- Turn the twist lock counter-clockwise -arrow- and disconnect the connector -1- for the DSG Transmission Mechatronic -J743-

Courtesy of AUDI OF AMERICA, LLC

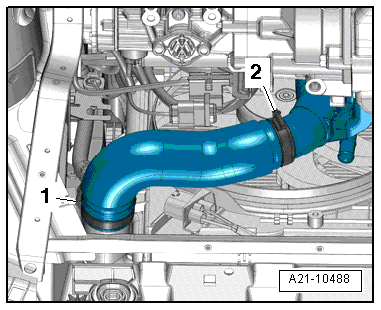

-- Vehicles with a TFSI engine: loosen the clamps -1 and 2-, and remove the air guide hose.

Courtesy of AUDI OF AMERICA, LLC

-- Place the :SMN372500 under the transmission.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolts -arrows- diagonally.

-- Remove the oil pan -A- with oil pan gasket and let the transmission fluid remaining in oil pan drain into the :SMN372500 .

Installing

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

NOTE:

Replace the oil pan seals and bolts.

Replace the O-rings -arrows- on the DSG Transmission Mechatronic -J743- connector.

-- Clean any oil or grease off the sealing surfaces.

-- Coat the O-rings on the DSG Transmission Mechatronic -J743- connector with transmission fluid.

-- Install the oil pan -A- and gasket and tighten. Refer to the appropriate service information. .

-- Refer to TRANSMISSION FLUID, DRAINING AND FILLING fill transmission oil and check oil level TRANSMISSION FLUID LEVEL, CHECKING .
