Air Duct Pipe, Removing And Installing, Vehicles With Turbocharger Without Radiator
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Socket T30: T10405
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Remove the connection on the turbocharger. Refer to TURBOCHARGER CONNECTIONS, REMOVING AND INSTALLING .

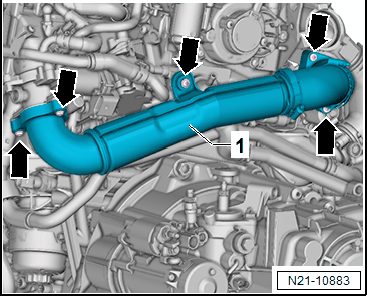

-- Remove the bolts -arrows-.
-- Remove the air duct pipe -1-.
Installing:
Install in the reverse order of removal while noting the following:
Tightening Specifications:
- Refer to OVERVIEW - CHARGE AIR SYSTEM
- Refer to OVERVIEW - TURBOCHARGER
- Refer to OVERVIEW - AIR FILTER HOUSING
