Engine, Securing To Engine And Transmission Holder

WARNING: This page is about a different car, the 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine and Transmission Holder: VAS6095A

Procedure

Engine engaged with the : 2024B on the : VAS6100 . Refer to ENGINE, REMOVING FROM SCISSOR LIFT TABLE .

-- Remove the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .

-- Remove the intermediate plate. Refer to Fig 1.

-- Remove the left alignment sleeve from the cylinder block.

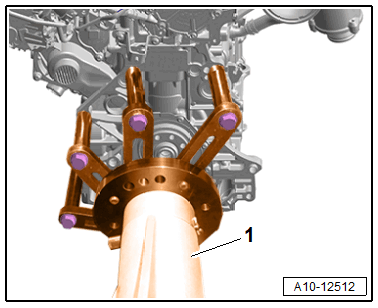

-- Secure the engine to the : VAS6095A -1-.

Courtesy of AUDI OF AMERICA, LLC

Assembling

Assemble in the reverse order of removal. Note the following:

-- Insert the left alignment sleeve into the cylinder block.

-- Install the intermediate plate. Refer to Fig 1.

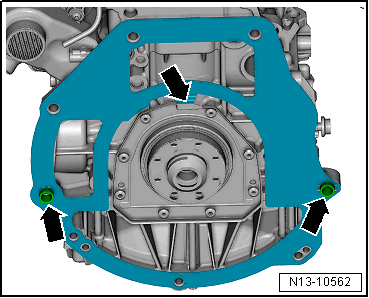

Fig 1: Intermediate Plate

Courtesy of AUDI OF AMERICA, LLC

-- Install the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .
