Engine, Removing From Scissor Lift Table

WARNING: This page is about a different car, the 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Lifting Support: 2024B
Shop Crane: VAS6100

Procedure

Engine/transmission assembly removed and separated on : VAS6131B . Refer to ENGINE AND TRANSMISSION, SEPARATING .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of injury from the lifted motor falling.

The possibility for parts of the body to be pinched or crushed increases.

- Secure the mounting hooks and pins on the lifting tackle with a securing pin.

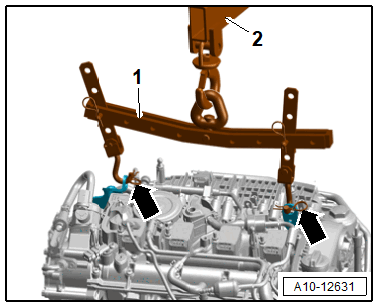

-- Engage the : 2024B -1- as shown on the engine lifting eye and on the : VAS6100 -2-.

-- Insert the securing pins -arrows- to secure the mounting hooks and alignment pins.

CAUTION:

Risk of injury due to the engine weight shifting.

The possibility for parts of the body to be pinched or crushed increases.

- Transport the engine only without the transmission using the method described.

-- Tension the engine slightly with the shop crane, but do not lift.

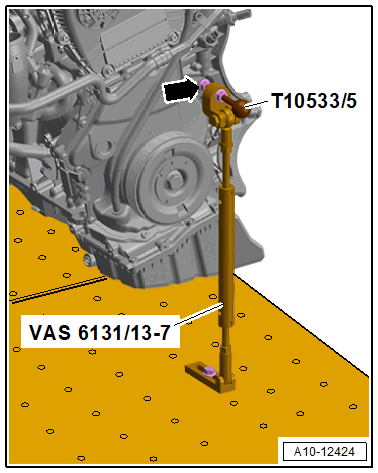

-- Remove the : VAS6131/13-7 from the engine.

Courtesy of AUDI OF AMERICA, LLC

-- Pry up the engine with the workshop crane.
