Overview - Windshield
WARNING: This page is about a different variant/trim than selected.

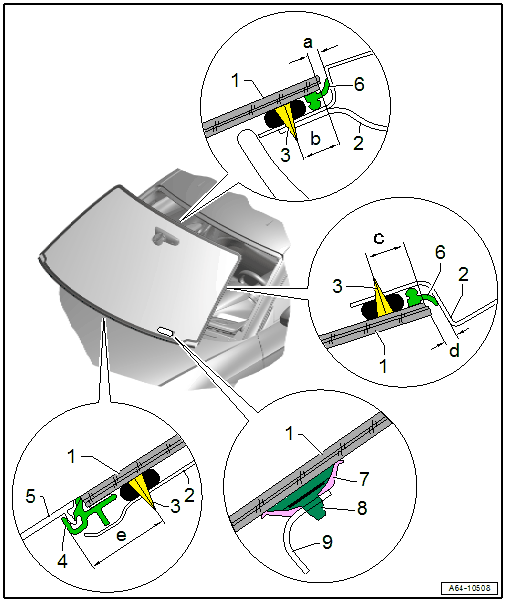

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Windshield
- Dimension -a- = 2 mm
- Dimension -d- = 3 mm
- Center the side distance to the A-pillars
- Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING .
- Windshield Frame
- Adhesive
- Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances to the window edge
- Dimension -b- = 14 mm
- Dimension -c- = 14 mm
- Dimension -e- = 27 mm
- Pay attention to the length of the adhesive bead on the lower window corners. Refer to Fig 1.
- At the factory the windshield is installed with a second adhesive bead on the lower edge. The second adhesive bead is not used for a second installation of the window glass.
- Adhesive bead thickness. Refer to Adhesive Application: .
- Plenum Chamber Cover Frame
- Windshield component
- No replacement part
- With a new windshield, the protective section must first be removed before installing the plenum chamber cover.
- Plenum Chamber Cover
- Insert in the frame -item 4-.
- Push in all the way after the adhesive curing time.
- Cover Profile
- At the sides and top of the windshield
- Replace if reusing the undamaged windshield. Refer to Installing the cover profile: .
- Sealing Lip
- For the VIN label
- VIN Label
- Bracket
- For the VIN label
Position of the Adhesive Bead on the Lower Windshield Corners
-- Apply the adhesive bead -1- on both lower windshield corners, as shown.
a - 95 mm
b - 75 mm
c - 45 mm
