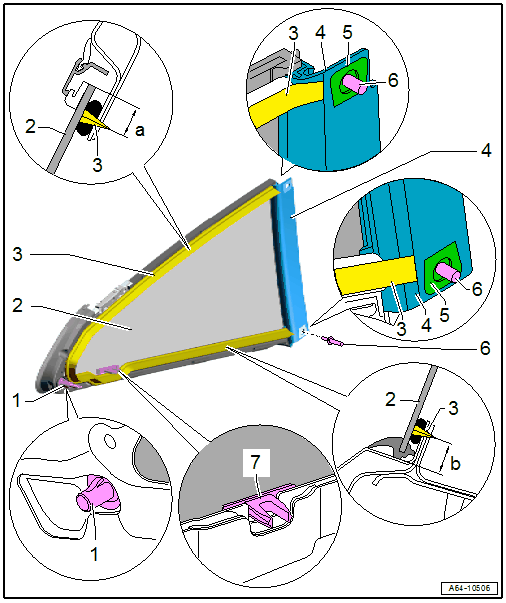

Overview - Rear Side Window

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

1. Retainer
   • No replacement part
   • Is cut through when removing the window
2. Rear Side Window
   • Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
   • When installing, first press onto the C-pillar with the retainers -item 1- and then secure with pop rivets.
3. Adhesive
   • Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
   • Note the different distances to the window edge
     • Dimension -a- = 15 mm
     • Dimension -b- = 15 mm
   • Pay attention to the position of the adhesive bead on the retainer. Refer to Fig 1.
   • Adhesive bead thickness. Refer to Adhesive Application: .
4. Aluminum Profile
   • Unit with the side window
   • Cannot be replaced separately
5. Anti-Friction Film
6. Pop Rivet
   • To remove the side window, drill out rivet heads and drive out rivet shafts.
7. Retainer
   • No replacement part
   • Is cut through when removing the window

Position of the Adhesive Bead on the Retainer

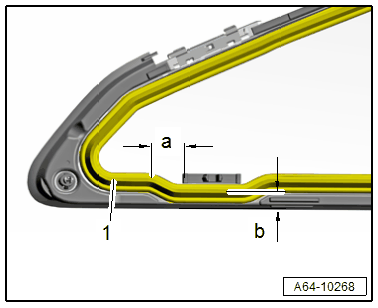

Fig 1: Position of the Adhesive Bead on the Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Apply the adhesive bead -1- as shown.

a - 20 mm

b - 10 mm
