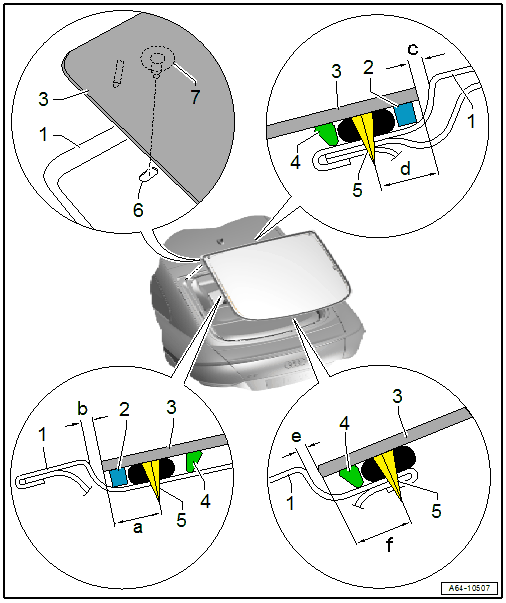

Overview - Rear Window

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

TIP:

There may be connections in the rear window delivery package that are only necessary for some optional equipment. Remove any unnecessary cable ends directly at the connection on the rear window.

Courtesy of AUDI OF AMERICA, LLC

1. Adhesive Stopper Profile
2. Rear Lid
3. Rear Window
   • Before removing, disconnect all connectors and secure the terminals to the middle of the window on the inside using adhesive tape.
     • Dimension -b- = 2.6 mm
     • Dimension -c- = 2.3 mm
     • Dimension -e- = 2.5 mm
   • Center the window glass along the sides.
4. Spacer
   • Place on the markings made on the ceramic coating
   • Quantity: 8
5. Adhesive
   • Dimension -a- = 14 mm
   • Dimension -d- = 14 mm
   • Dimension -f- = 16.8 mm
   • Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
6. Securing Hole
   • In the rear lid
7. Retainer
   • On the rear window
