Side and Length Adjustment at Hinge:

WARNING: This page is about a different variant/trim than selected.

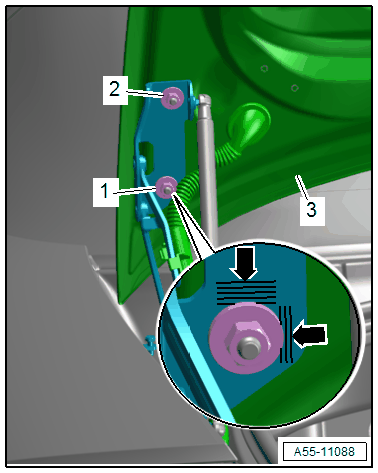

GWWA55-11088Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nuts -1 and 2-.

-- Align the rear lid -3- side- and lengthwise according to the marks -arrows-.

-- Tighten the nuts.

Tightening Specifications
