Height Adjustment at Hinge:

WARNING: This page is about a different variant/trim than selected.

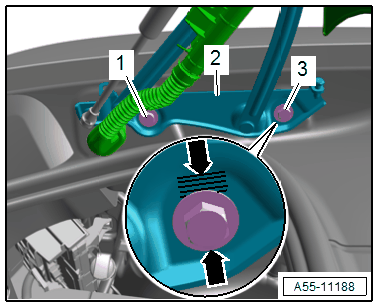

GWWA55-11188Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolts -1 and 3-.

-- Adjust the height of the hinge -2- according to the marks -arrows-.

-- Tighten the bolts.

Tightening Specifications
