Windshield Frame Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the sun visors. Refer to SUN VISOR, REMOVING AND INSTALLING .
-- Remove the sun visor center support. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
-- Remove the roof module. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

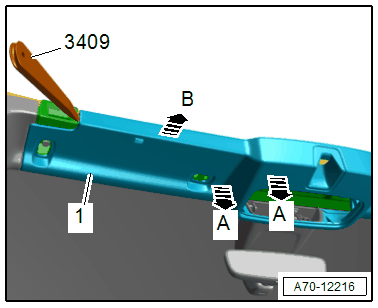

-- Unclip the windshield frame trim panel -1- with the : 3409 at the indicated point.
-- Repeat the process on the opposite side.
-- Unclip the windshield frame trim panel in the area of the roof module from the windshield frame in direction of -A arrows-.
-- Remove the windshield frame trim panel toward the rear from the windshield frame in direction of -arrow B-.
