Sun Visor, Removing And Installing

Removing, TT Coupe

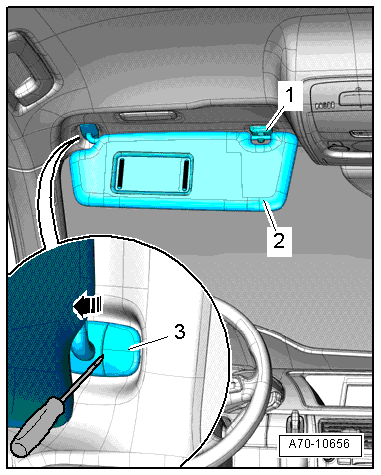

Fig 1: Removing Sun Visor

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the sun visor -2- at the center support -1-.

-- Unclip the expanding cap -3- using a screwdriver.

-- Remove the sun visor mount downward in direction of -arrow- out of the opening in the body.

-- Disconnect the connector and remove the sun visor.

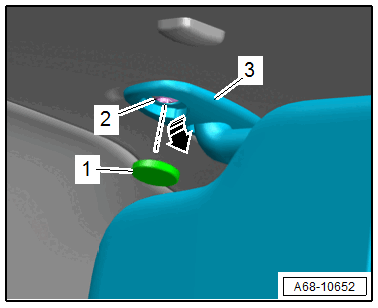

Removing, TT Roadster

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the sun visor from the center support.

-- Unclip the cap -1- with a screwdriver and remove the bolts -2- in the rear.

-- Remove the sun visor mount -3- downward in direction of -arrow- out of the opening in the body.

Installing

Install in reverse order of removal
