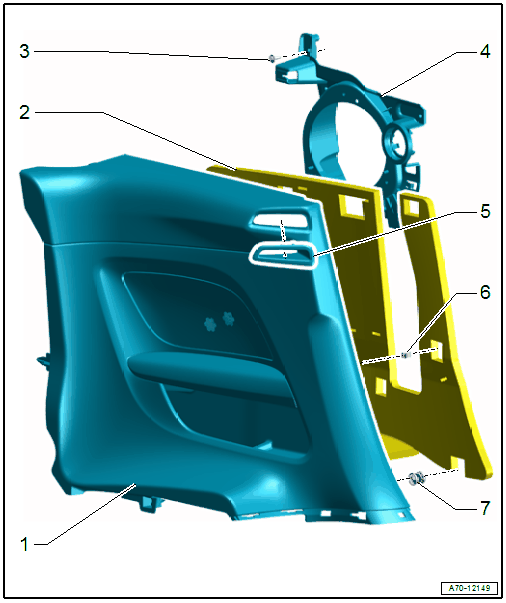

Overview - Side Trim Panel
WARNING: This page is about a different variant/trim than selected.
- Side Trim Panel
- Removing and installing. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Stretch the door seal lip over
- Insulation
- Bolt
- 1.5 Nm
- Quantity: 5
- Mount
- For the speaker/side trim panel
- Front Seat Belt Guide
- Removing and installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Clip
- Replace damaged or deformed clips
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool: T40280 .
- Insert into the side trim panel
- Quantity: 5
- Clip
- Replace damaged or deformed clips
- For the side trim
- Insert in the trim panel
