Front Seat Belt Guide, Removing And Installing
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Wedge Set: T10383

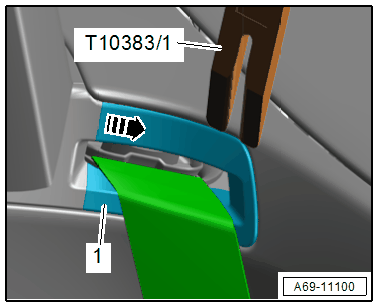

Removing, TT Coupe
-- Unclip the front seat belt guide -1- from the side trim panel using the : T10383/1 in direction of -arrow-.
-- Guide out the seat belt webbing -2- from the seat belt guide.

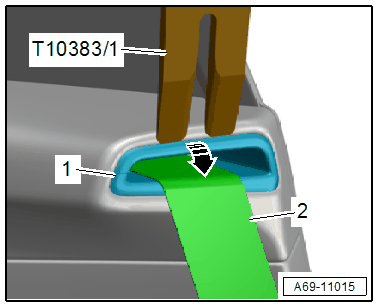

Removing, TT Roadster
-- Open the convertible top.
-- Unclip the front seat belt guide -1- from the rear panel cover using the : T10383/1 .
-- Remove the seat belt guide outward in the direction of the -arrow- out of the rollover protection trim panel.
Installing
Install in reverse order of removal.
