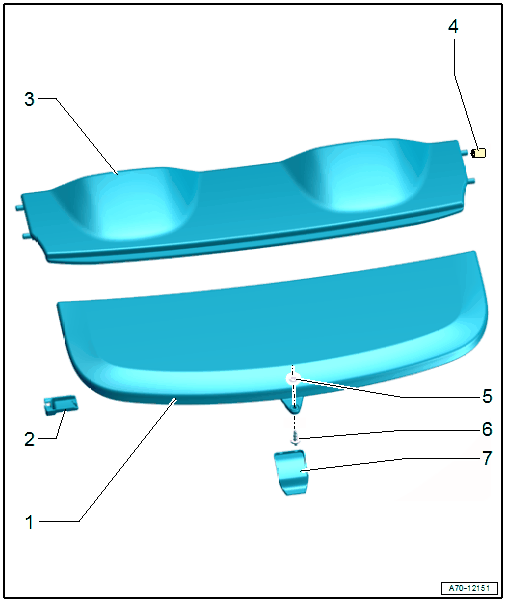

Overview - Rear Shelf
WARNING: This page is about a different variant/trim than selected.
NOTE:
To service the rear shelf, there is a repair kit available. Refer to the Parts Information.
- Rear Shelf Rear
- Engaged in the rear lid trim panel mount
- Mount
- Not available separately from the repair kit. Refer to the Parts Information.
- Clipped in the rear shelf
- Repairing, replace the mount. Refer to REAR SHELF, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Rear Shelf Front
- Inserted in the luggage compartment side trim panel mount
- Rubber Cap
- Quantity: 4
- Insert in the rear shelf
- Washer
- Not available separately from the repair kit. Refer to the Parts Information.
- Insert in the locking pin
- Locking Pin
- Not available separately from the repair kit. Refer to the Parts Information.
- Insert in the rear shelf
- Cover
- Not available separately from the repair kit. Refer to the Parts Information.
- Clipped in the rear shelf
- Press on until it engages audibly
