Rear Shelf, Removing And Installing
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Trim Removal Wedge: 3409
Removing
-- Remove the rear shelf and place it on a stable clean surface.
Removing the Mount:

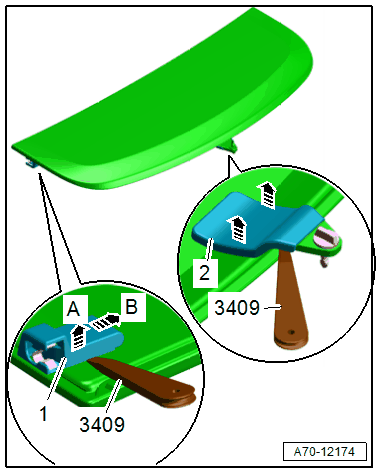

-- Unclip the mount -1- with the : 3409 in direction of -arrow A- and disengage and remove in the direction of -arrow B-.
Removing the Cover:
-- Unclip the cover -2- -arrows- with the : 3409 and remove it.
