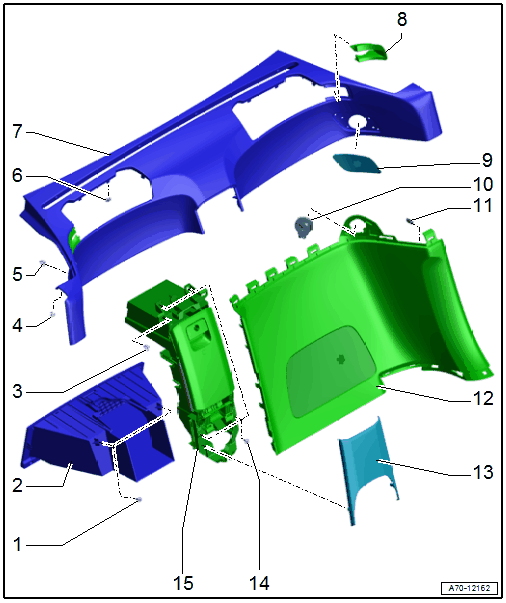

Overview - Rear Panel Trim Panel
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 2 Nm
- Quantity: 2
- Storage Compartment
- Removing and installing. Refer to CENTER STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Clip
- Replace damaged or deformed clips
- Press in the storage compartment opening
- Quantity: 2
- Clip
- Replace damaged or deformed clips
- Remove the clips that are still in the body mounting points using the Omega Clip Tool: T40280 .
- Insert into the rear panel cover
- Quantity: 6
- Clip
- Replace damaged or deformed clips
- Press in the rollover protection trim panel opening and the body
- Quantity: 3 on the left and right side
- Clip
- Replace damaged or deformed clips
- Insert into the rear panel cover
- Quantity: 6
- Rear Panel Cover
- Removing and Installing. Refer to REAR PANEL COVER, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Front Seat Belt Guide
- Removing and installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Speaker Trim
- Press into the rear panel cover until it engages audibly
- Treble Speaker
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
- Clip
- Replace damaged or deformed clips
- Insert into the rear panel cover
- Remove the clips that are still in the body mounting points using the Omega Clip Tool: T40280 .
- Quantity: 10
- Rear Panel Trim Panel
- Removing and installing. Refer to REAR PANEL TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Stretch the door seal lip over
- Center Rear Panel Trim Panel
- Removing and installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Bolt
- 2 Nm
- Quantity: 5
- Storage Compartment
- Removing and installing. Refer to CENTER STORAGE COMPARTMENT, REMOVING AND INSTALLING .
