Overview - Front Door Trim Panel

WARNING: This page is about a different variant/trim than selected.

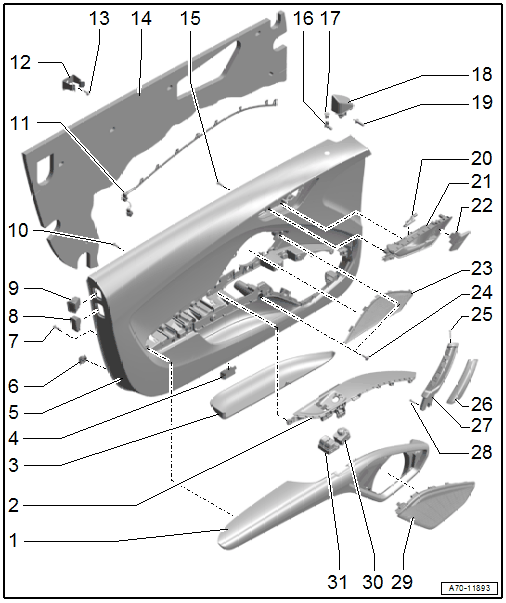

Fig 1: Exploded View Of Front Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Armrest
- Removing and installing. Refer to FRONT ARMREST, REMOVING AND INSTALLING .
Button Trim
- Switch mount
- Removing and installing. Refer to BUTTON TRIM, REMOVING AND INSTALLING .
Liner Mat
- Insert in the door pocket.
Driver Side Entry Lamp -W92-
- Passenger side: Passenger Side Entry Lamp -W93-
- Equipment levels
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT DOOR LAMPS .
Door Trim Panel
- Removing and installing. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- When replacing the door trim panel, a hole for the sleeve -item 15- must be made in the new panel using the old panel as a sample.
Clip
- For door trim panel
- Insert in the trim panel
- Quantity: 8
Bolt
- 1.2 Nm
- For the armrest
- Quantity 21
Rear Reflector
- Driver side equipment level: Driver Door Warning Lamp -W30-
- Front passenger side equipment level: Front Passenger Door Warning Lamp -W36-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT DOOR LAMPS .
Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Equipment levels
- Overview. Refer to OVERVIEW - INTERIOR MONITORING .
Bolt
- 1.2 Nm
- For the button trim
- Quantity: 3
Driver Door Ambient Lighting Bulb -L164-
- Front passenger side: Front Passenger Door Ambient Lighting Bulb -L165-
- Allocation. Refer to the Parts Information.
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - DOOR AMBIENT LIGHTING .
Clip
- For door trim panel
Bolt
- 2.5 Nm
Insulation
Bolt
- 1.2 Nm
- For the interior door mechanism
- Quantity: 6
Central Locking -Safe- Indicator Lamp -K133-
Sleeve
- For Central Locking -SAFE- Indicator Lamp -K133-
- Driver door only
- When replacing the door trim panel, a hole for the sleeve must be made in the new panel using the old panel as a sample
Inner Triangular Trim
- Removing and installing. Refer to TRIANGULAR TRIM, REMOVING AND INSTALLING .
Stop
- 4.5 Nm
- For door trim panel
Driver Door Opener Illumination Bulb -L108-
- Front passenger side: Front Passenger Door Opener Illumination Bulb -L109-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT DOOR LAMPS .
Interior Door Mechanism
- Removing and installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Driver Interior Locking Button -E308-
- Front passenger side: Front Passenger Interior Locking Button -E309-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Speaker Trim
- For midrange speaker
- Removing and installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- Insert in the door trim panel and press on it until it engages audibly.
Bolt
- 2.5 Nm
- For door trim panel
- Quantity: 2
Bolt
- 1.2 Nm
- For the pull handle
- Quantity: 2
Decorative Trim
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING .
Pull Handle
- Removing and Installing. Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING .
Bolt
- 1.2 Nm
- For the pull handle
- Quantity: 2
Speaker Trim
- For the bass speaker
- Removing and installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- Insert in the door trim panel and press on it until it engages audibly.
Mirror Adjusting Switch -E43-
- Equipped on some models: Folding Mirror Adjustment Switch -E168-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Power Window Control Head in Driver Door -E512-
- Front passenger side: Front Passenger Door Window Regulator Switch -E107-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
