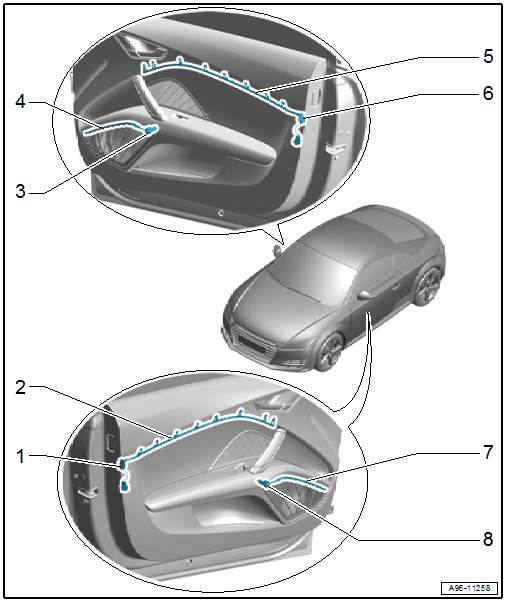

Component Location Overview - Door Ambient Lighting
WARNING: This page is about a different variant/trim than selected.
- Driver Door Ambient Lighting Bulb -L164-
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER DOOR AMBIENT LIGHTING BULB -L164- / -L165-, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Ambient Lighting Bulb
- Removing and installing. Refer to FIBER-OPTIC CABLE FOR DRIVER AND FRONT PASSENGER DOOR AMBIENT LIGHTING BULB -L164- / -L165-, REMOVING AND INSTALLING .
- Lamp for Passenger Side Door Speaker Trim -L223-
- Removing and installing. Refer to LAMP FOR DRIVER AND PASSENGER SIDE DOOR SPEAKER TRIM -L223- / -L224-, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Ambient Lighting Bulb
- In the speaker trim
- Front Passenger Door Ambient Lighting Bulb -L165-
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER DOOR AMBIENT LIGHTING BULB -L164- / -L165-, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Ambient Lighting Bulb
- Removing and installing. Refer to FIBER-OPTIC CABLE FOR DRIVER AND FRONT PASSENGER DOOR AMBIENT LIGHTING BULB -L164- / -L165-, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Ambient Lighting Bulb
- In the speaker trim
- Lamp for Driver Side Door Speaker Trim -L223-
- Removing and installing. Refer to LAMP FOR DRIVER AND PASSENGER SIDE DOOR SPEAKER TRIM -L223- / -L224-, REMOVING AND INSTALLING .
