Overview - Glove Compartment

WARNING: This page is about a different variant/trim than selected.

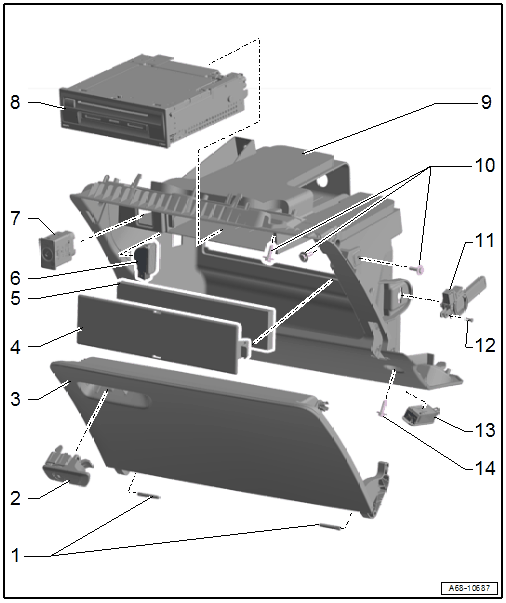

Fig 1: Exploded View Of Glove Compartment

Courtesy of AUDI OF AMERICA, LLC

Hinge Pin
- For the glove compartment lid
- Quantity: 2
Glove Compartment Handle
- Removing and Installing. Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING .
- Lock Cylinder, Removing and Installing. Refer to GLOVE COMPARTMENT HANDLE LOCK CYLINDER, REMOVING AND INSTALLING .
- Press into the glove compartment cover until it engages audibly
Glove Compartment Lid
- Removing and installing. Refer to GLOVE COMPARTMENT LID, REMOVING AND INSTALLING .
- TT Roadster: with Glove Compartment Lock Motor -V224-
Service Cover
- For the pollen filter
- Press on until it engages audibly
Cover
Glove Compartment Lamp -W6-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL LAMPS .
Front Passenger Airbag Deactivation Key Switch -E224-
- Not for North American market.
Information Electronics Control Module 1 -J794-
- Allocation. Refer to the Parts Information.
- Overview. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
Glove Compartment
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 6
Dampening Mechanism
- For the glove compartment lid
- With Glove Compartment Lamp Switch -E26-
- Removing and installing. Refer to GLOVE COMPARTMENT LID DAMPENING MECHANISM, REMOVING AND INSTALLING .
Hinge Pin
- For the dampening mechanism
Right Footwell Lamp -W10-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL LAMPS .
Bolt
- 3 Nm
- Quantity: 2
