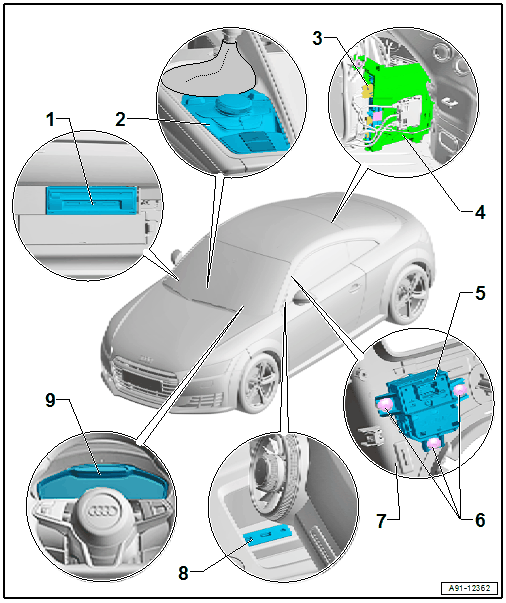

Component Location Overview - Infotainment System
WARNING: This page is about a different variant/trim than selected.
- Information Electronics Control Module 1 -J794-
- Connector assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Multimedia System Control Head -E380-
- Removing and installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING .
- TV Tuner -R78-
- Not for North America
- Refer to TV SYSTEM
- Bracket
- Driver Volume Control -E67-
- Removing and installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 3
- Center Console Insert
- Removing and installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- External Audio Source Connection -R199-
- Instrument Cluster Control Module -J285-, Display
- Connector assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
