Overview - Center Console, Storage Net

WARNING: This page is about a different variant/trim than selected.

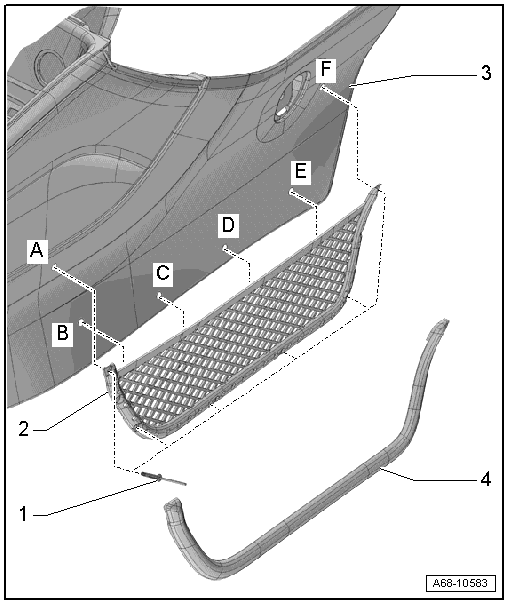

Fig 1: Exploded View Of Center Console Storage Net

Courtesy of AUDI OF AMERICA, LLC

Pop Rivet
- Riveted with : VAS5072 .
- Quantity: 6
Storage Net
- Secured on the center console front passenger side
- Removing and installing. Refer to STORAGE NET, REMOVING AND INSTALLING .
Center Console
- Create the openings -A to F- afterword to 3.5 mm diameter.
- Add the storage net in the new center console. Refer to STORAGE NET, ADDING IN NEW CENTER CONSOLE .
Storage Net Trim
- Removing and installing. Refer to STORAGE NET, REMOVING AND INSTALLING .
- Attach upper trim to the frame and press on it until it engages audibly
