Storage Net, Adding In New Center Console

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

NOTE:

As an original component the center console is delivered without a storage net.

For vehicle versions with a storage net the storage net must be installed in the new center console, as described as follows.

Procedure

Courtesy of AUDI OF AMERICA, LLC

-- Lay the center console on a stable, clean surface.

WARNING:

Risk of eye injury!

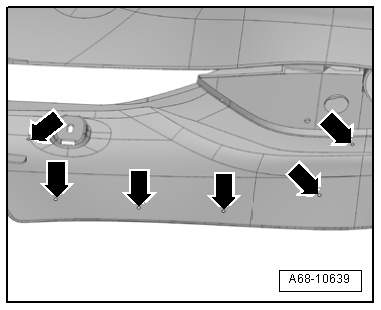

-- Stamp out the inner impressions -arrows- on the center console openings for the storage net 3.5 mm diameter, as shown in the illustration.

-- Install the storage net. Refer to STORAGE NET, REMOVING AND INSTALLING .

-- Install the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
