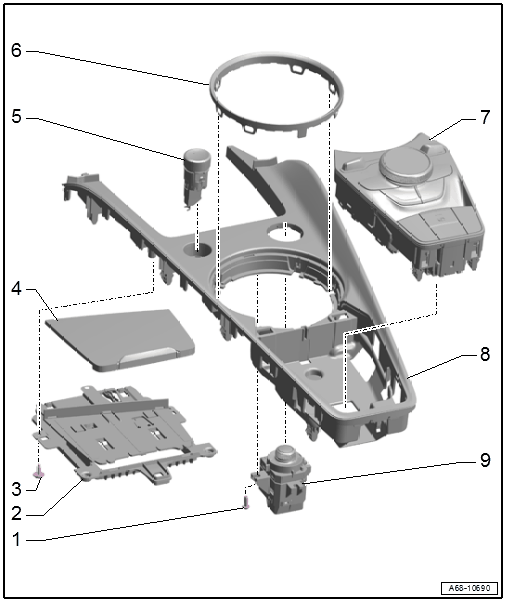

Overview - Center Console, Insert
WARNING: This page is about a different variant/trim than selected.
- Bolt
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
- Quantity: 3
- Storage Compartment Cover
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to STORAGE COMPARTMENT COVER, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 4
- Cover Trim
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to STORAGE COMPARTMENT COVER, REMOVING AND INSTALLING .
- Engage on the cover and press on it until it audibly engages
- Access/Start Authorization Button -E408-
- Removing and installing. Refer to ACCESS/START AUTHORIZATION BUTTON -E408-, REMOVING AND INSTALLING .
- Trim Molding
- For the center console insert
- Removing and installing. Refer to CENTER CONSOLE TRIM MOLDING, REMOVING AND INSTALLING .
- Insert the insert press on until it clicks into place
- Multimedia System Control Head -E380-
- Allocation. Refer to the Parts Information.
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
- Press on until it engages audibly
- Center Console Insert
- Removing and installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Engage in the front of the center console and press on it until it engages audibly.
- Driver Volume Control -E67-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
