Overview - Center Console, Cover

WARNING: This page is about a different variant/trim than selected.

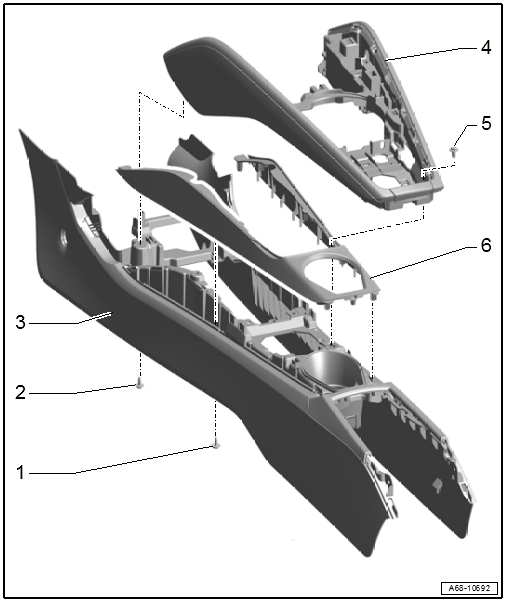

Fig 1: Exploded View Of Center Console, Cover

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 1.4 Nm
- Quantity: 8
Bolt
- 3 Nm
- Quantity: 4
Center Console
- Removing and installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Equipped on some models: Add the storage net in the new center console. Refer to STORAGE NET, ADDING IN NEW CENTER CONSOLE .
Upper Cover
- Removing and installing. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 4
Lower Cover
- Equipment levels
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .
