Power Top Operation Switch -E137-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Multimedia System Control Head -E380-. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .

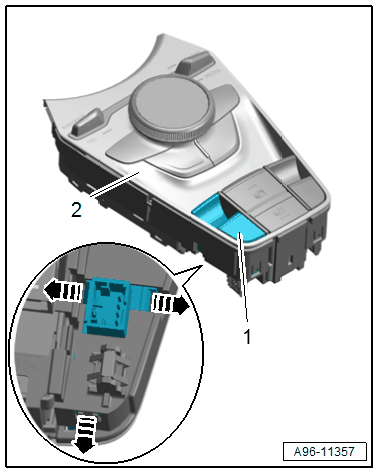

-- Release the clips in direction of -arrows-.

-- Remove the button -1- from the Multimedia System Control Head -E380- -2-.
