Component Location Overview - Controls In Roof Trim Panel, Part 1
WARNING: This page is about a different variant/trim than selected.

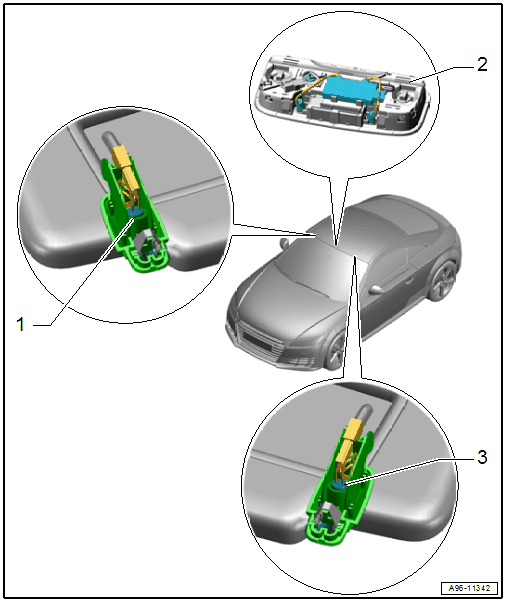

- Front Passenger Vanity Mirror Lamp Contact Switch -F148-
- Integrated in the sun visor pivot bearing. Cannot be replaced separately if faulty.
- Sun visor, replacing. Refer to SUN VISOR, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Driver Vanity Mirror Lamp Contact Switch -F147-
- Integrated in the sun visor pivot bearing. Cannot be replaced separately if faulty.
- Sun visor, replacing. Refer to SUN VISOR, REMOVING AND INSTALLING .
