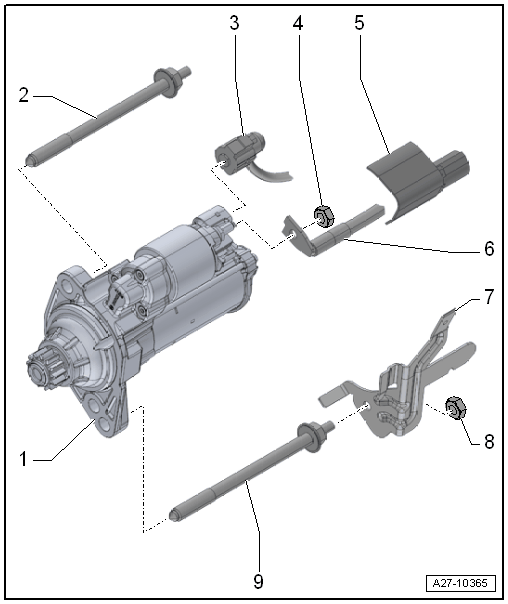

Overview - Starter, Vehicles With Manual Transmission
WARNING: This page is about a different variant/trim than selected.
- Starter
- Removing and Installing. Refer to STARTER, REMOVING AND INSTALLING .
- Bolt
- Tightening specification:
- Bolted connection for starter to engine/transmission flange. Refer to TRANSMISSION TIGHTENING SPECIFICATIONS .
- Tightening specification:
- Connector
- Nut
- 20 Nm
- Cap
- 30/B+ Terminal
- Bracket
- For wiring harness
- Nut
- 20 Nm
- Bolt
- Tightening specification:
- Bolted connection for starter to engine/transmission flange. Refer to TRANSMISSION TIGHTENING SPECIFICATIONS .
- Tightening specification:
