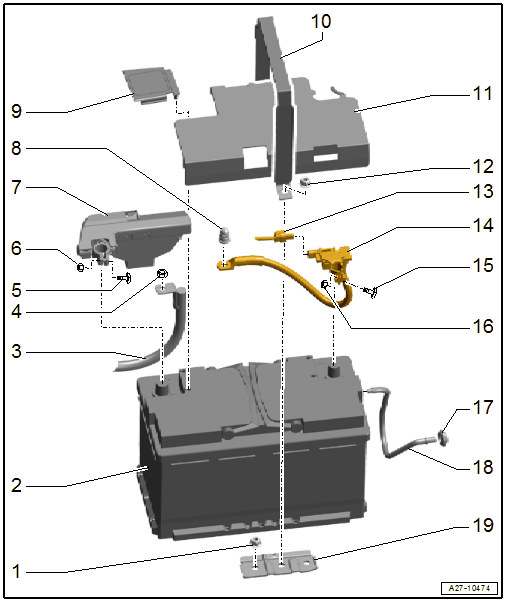

Overview - Battery
WARNING: This page is about a different variant/trim than selected.
- Nut
- 20 Nm
- Battery
- Checking. Refer to Battery, Checking .
- Removing and installing. Refer to BATTERY, REMOVING AND INSTALLING .
- Positive Cable
- To the engine
- Nut
- 20 Nm
- Bolt
- Nut
- 6 Nm
- Main Fuse Box
- In the luggage compartment at the right rear on the battery
- Disconnecting and connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Nut
- 20 Nm
- Positive Terminal Cover
- Retaining Bracket
- Battery Cover
- Equipped on some models
- Nut
- 20 Nm
- Wire
- For Battery Monitoring Control Module -J367-
- Follow the sequence when connecting the ground cable. Refer to Connecting
- Ground Cable
- With Battery Monitoring Control Module -J367-
- Disconnecting and connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Removing and installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING .
- Bolt
- Nut
- 6 Nm
- Grommet
- For the central venting system hose
- Central Venting System Hose
- Battery Bracket
