Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the side speaker trim. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .

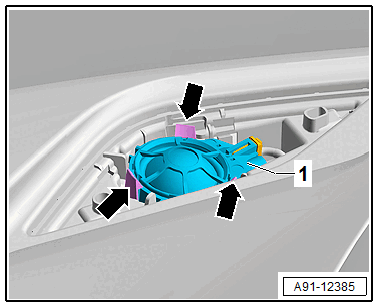

-- Push the tabs -arrows- on the Left Front Treble Speaker -R20- -1- and remove the Left Front Treble Speaker -R20- -1- upward.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector from the Left Front Treble Speaker -R20- -1-.
