Calibration Requirements

• The camera lens must be clean.
• The vehicle must be standing on a firm and level surface.
• There must be sufficient open space around the vehicle.
• The parking brake must be set.
• The steering wheel must be in the 0 position and the wheels must be straight.
• All doors and the rear lid must be closed.
• No one should be in the vehicle.
• The vehicle must not be loaded (curb weight).
• Before each calibration: turn on the ignition.

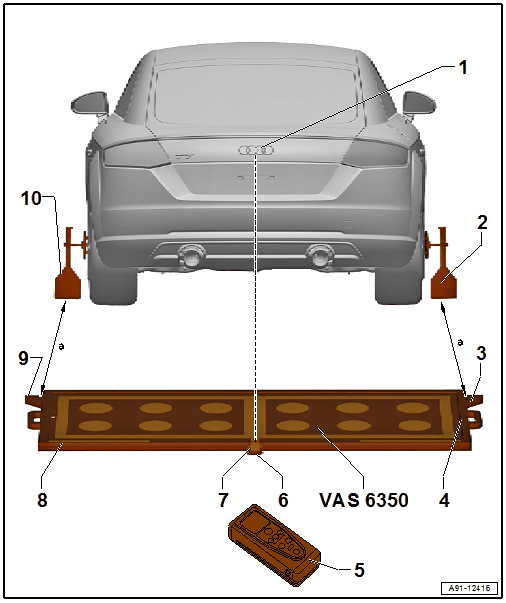

Installed Overview

Courtesy of AUDI OF AMERICA, LLC

1. Audi Rings in the Rear Lid
2. Calibration Tool - Wheel Center Mountings: VAS6350/1
3. Right Angle Bracket
   • Calibration Tool - Spacing Laser: VAS6350/2  mount
4. Level
   • On the calibration board
   • For checking the horizontal position
5. Calibration Tool - Spacing Laser: VAS6350/2
   • Refer to the Owner's Manual for notes on the operation.
6. Plastic Foot
   • Three on underside of the calibration board
   • Adjustable for aligning horizontal position of the calibration board
7. Calibration Tool - Linear Laser: VAS6350/3
   • On the calibration board
   • Switching on and off. Refer to the Owner's Manual.
8. Calibration Board
   • Between the mounts on the calibration board and the Calibration Tool - Wheel Center Mountings: VAS6350/1  dimension - a- 1.47 m through 1.90 m.
9. Left Angle Bracket
   • Calibration Tool - Spacing Laser: VAS6350/2  mount
10. Calibration Tool - Wheel Center Mountings: VAS6350/1

Calibration Board Orientation

-- Position the calibration platform behind the vehicle at a distance of 1.47 m to 1.90 m to the rear wheels, see -dimension a- in the overview illustration. Refer to Installed Overview  above.

-- Bring the Calibration Tool: VAS6350  into a horizontal position.

-- Twist the plastic feet under the calibration board so that the air bubble in the level is located exactly in the center of the indicator -arrow-.

Fig 1: Identifying Bubble Level (Sight Glass) On Calibration Tool VAS 6350

Courtesy of AUDI OF AMERICA, LLC

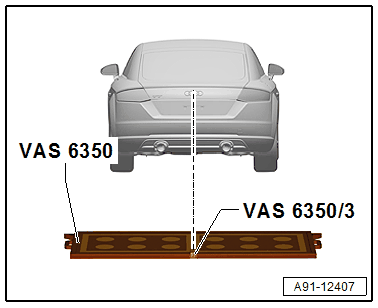

-- Switch on the Linear Laser: VAS6350/3A  -1- on the calibration board and adjust the entire Calibration Tool: VAS6350  so that the laser beam hits the center of vehicle rear above the Audi rings.

Courtesy of AUDI OF AMERICA, LLC

-- Check that the Audi rings are centered on the rear. Correct the laser beam accordingly.

Continue calibrating the Rearview Camera -R189-. Refer to Rearview Camera -R189-, CALIBRATING .
