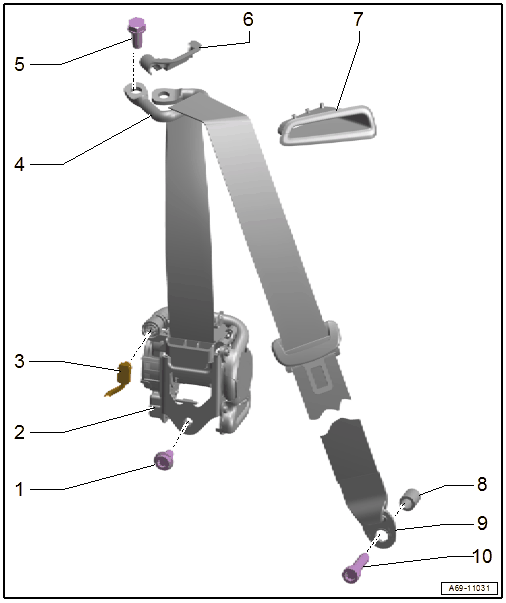

Overview - Front Three-Point Seat Belt, TT Coupe
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Automatic Belt Retractor
- Driver side with
- Driver Seat Belt Tensioner Igniter 1 -N153-
- Driver Belt Force Limiter -G551-
- Equipped on some models/market-specific: Left Front Seat Belt Tensioner Control Module -J854-
- Front passenger side with
- Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Front Passenger Belt Force Limiter -G552-
- Equipped on some models/market-specific: Right Front Seat Belt Tensioner Control Module -J855-
- Removing and installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING, TT COUPE .
- Driver side with
- Connector
- Seat Belt Guide
- Removing and installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING, TT COUPE .
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Quantity: 2
- Seat Belt Guide
- Clipped in on the seat belt guide
- Removing and installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING, TT COUPE .
- Seat Belt Guide
- Clipped in the side trim
- Removing and installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Stop Sleeves
- Belt End Fitting
- Removing and installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
