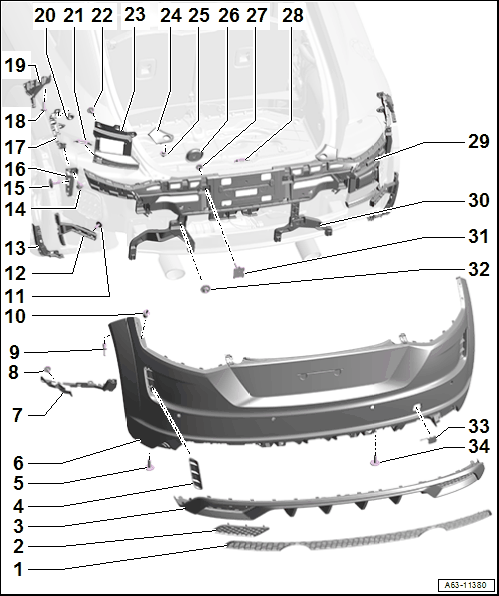

Overview - Bumper Cover, From My 2019
WARNING: This page is about a different variant/trim than selected.
- Trim
- For the bumper cover lower section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION TRIM, REMOVING AND INSTALLING, FROM MY 2019 .
- Trim
- For the bumper cover lower section
- S line equipment versions
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION TRIM, REMOVING AND INSTALLING, FROM MY 2019 .
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Trim
- Replace after removing.
- For the bumper cover
- S line equipment versions
- Bonded on the bumper cover
- Bolt
- 2 Nm
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Reinforcement
- Outside
- Bolt
- 2 Nm
- Quantity: 2
- Expanding Rivet
- Expanding Rivet
- Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Quantity: 2
- Mount
- For the bumper cover
- Lower
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
- Retaining Strip
- For the wheel housing liner
- Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Quantity: 2
- Mount
- For the bumper cover
- Rear side
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
- Mount
- For the bumper cover
- Center side
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
- Fitting Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Quantity: 2
- Mount
- For the bumper cover
- Front side
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
- Clip Nut
- Clip
- Quantity: 2
- Bolt
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Quantity: 3
- Reinforcement
- Side
- Removing and Installing. Refer to SIDE BUMPER COVER REINFORCEMENT, REMOVING AND INSTALLING .
- Cover
- Bolt
- 3 Nm
- Cover
- Quantity: 4
- Nut
- 5 Nm
- Quantity: 4
- Clip
- Quantity: 2
- Reinforcement
- Center
- Removing and Installing. Refer to CENTER BUMPER COVER REINFORCEMENT, REMOVING AND INSTALLING .
- Mount
- For the bumper cover
- Center
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
- Threaded Pin
- Quantity: 2
- Nut
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Cover
- For the towing eye
- Bolt
- 2 Nm
- Quantity: 6
