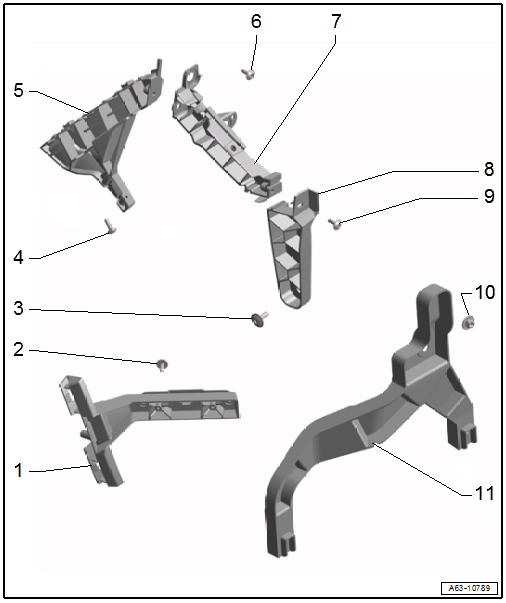

Overview - Bumper Cover Mount
WARNING: This page is about a different variant/trim than selected.
- Mount
- For the bumper cover
- Lower
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
- Bolt
- 2 Nm
- Quantity: 2
- Bolt
- Tightening sequence. Refer to Fig 1.
- Quantity: 2
- Fitting Bolt
- Tightening sequence. Refer to Fig 1.
- Quantity: 2
- Mount
- For the bumper cover
- Front side
- Removing and Installing. Refer to FRONT SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening sequence. Refer to Fig 1.
- Mount
- For the bumper cover
- Center side
- Mount
- For the bumper cover
- Rear side
- Removing and Installing. Refer to REAR SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening sequence. Refer to Fig 1.
- Nut
- 2 Nm
- Quantity: 3
- Mount
- For the bumper cover
- Center
- Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .

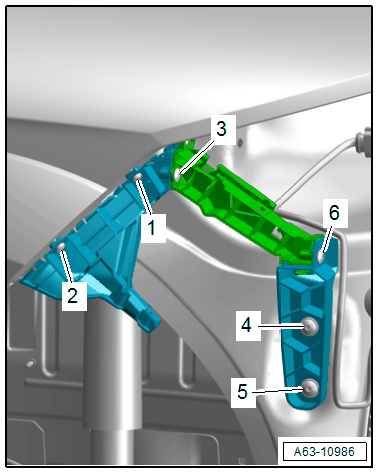

Bumper Cover Side Mount - Tightening Specification and Sequence
-- Tighten the bolts in the sequence shown -1 to 6- to 3 Nm.
