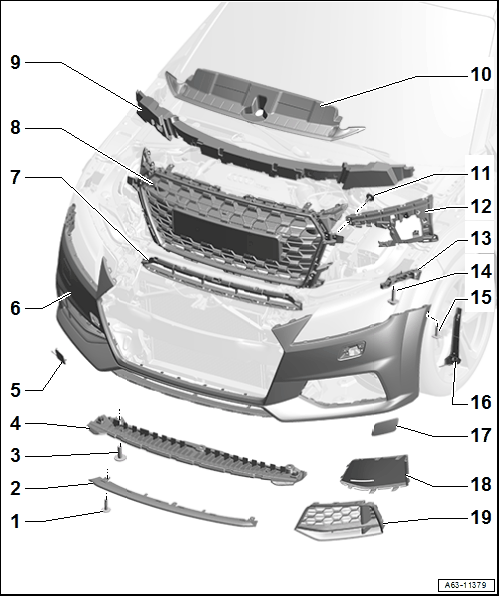

Overview - Bumper Cover, From My 2019
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 2 Nm
- Quantity: 3
- Front Spoiler-Lower Section
- Removing and Installing. Refer to FRONT SPOILER LOWER SECTION, REMOVING AND INSTALLING .
- Bolt
- 4.5 Nm
- Quantity: 3
- End Panel
- The bumper cover
- Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
- Towing Eye Cover
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Reinforcement Brace
- Lower
- Removing and Installing. Refer to LOWER REINFORCEMENT BRACE, REMOVING AND INSTALLING, FROM MY 2019 .
- Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE, FROM MY 2019 .
- Molded Foam Part
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
- Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Reinforcement Brace
- Side
- Removing and Installing. Refer to SIDE REINFORCEMENT BRACE, REMOVING AND INSTALLING .
- Mount
- For the bumper cover
- To secure the headlamp
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification -item 1) Bolt -
- Bolt
- 2 Nm
- Retaining Strip
- For the wheel housing liner
- Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
- Air Intake Grille Cap
- Air Intake Grille
- Removing and Installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, FROM MY 2019 .
