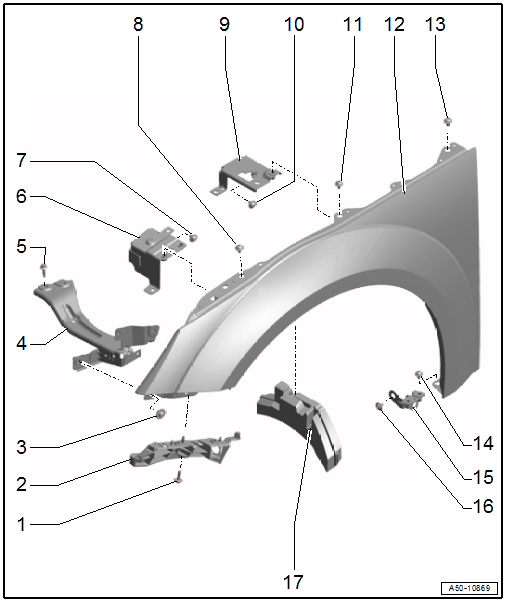

Overview - Fender
WARNING: This page is about a different variant/trim than selected.
- Overview - Covers on Fender. Refer to OVERVIEW - COVERS ON FENDER .
- Bolt
- 4.5 Nm
- Quantity: 2
- Mount
- For the bumper cover
- To secure the headlamp
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Fender Brace
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Bracket
- For the fender
- Front
- Removing and Installing. Refer to FRONT FENDER BRACKET, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 2
- Bracket
- For the fender
- Center
- Removing and Installing. Refer to CENTER FENDER BRACKET, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Fender
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Quantity: 2
- Bracket
- For the fender
- Lower
- Removing and Installing. Refer to LOWER FENDER BRACKET, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Seal
- Inside on the fender
