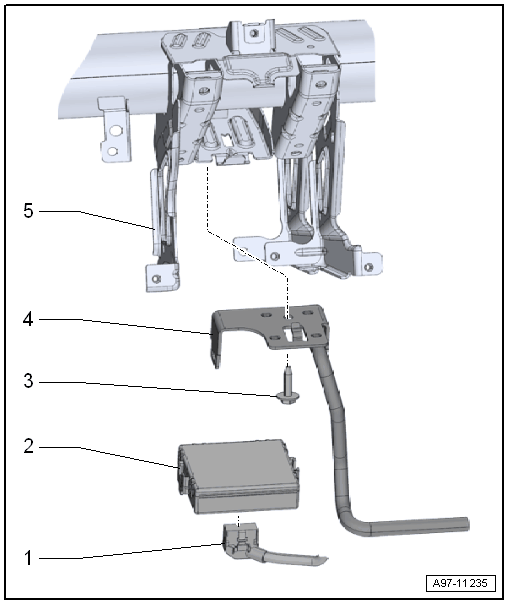

Overview - Data Bus On Board Diagnostic Interface
WARNING: This page is about a different variant/trim than selected.
- Connector
- For the Data Bus on Board Diagnostic Interface -J533-
- Data Bus on Board Diagnostic Interface -J533-
- Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL CROSSMEMBER .
- Crash Bolster
- Overview. Refer to OVERVIEW - INSTRUMENT PANEL CROSSMEMBER .
- Instrument Panel Crossmember
