Overview - Instrument Panel CROSSMEMBER
WARNING: This page is about a different variant/trim than selected.

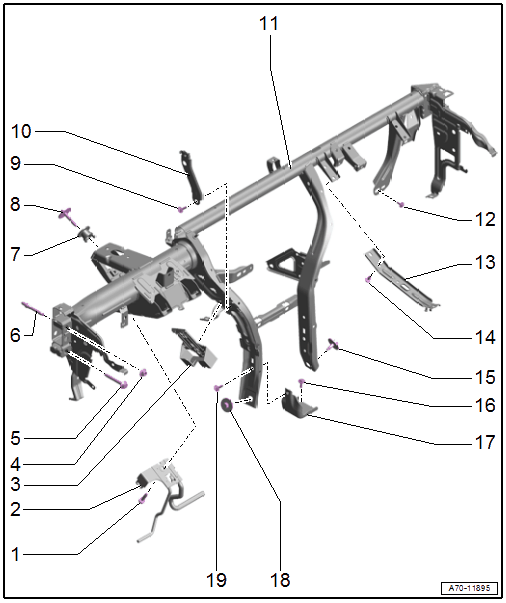

- Bolt
- 20 Nm
- Crash Bolster
- Removing and installing. Refer to CRASH BOLSTER, REMOVING AND INSTALLING .
- Bracket
- For Access/Start Authorization Control Module -J518-
- Overview. Refer to COMPONENT LOCATION OVERVIEW - ACCESS/START AUTHORIZATION SYSTEM .
- Clipped in the crossmember
- Nut
- 20 Nm
- Replace after removing
- Quantity: 1 on the left and right sideCAUTION:
There is a risk of malfunctions do to a faulty ground connection.
- The contact surface must be free of paint, coating, and corrosion, the threaded connection serves as the ground connection.
- Bolt
- 20 Nm
- Driver side onlyCAUTION:
There is a risk of malfunctions do to a faulty ground connection.
- The counter threaded and contact surface must be free of paint, coating, and corrosion, the threaded connection serves as the ground connection.
- Threaded Pin
- 20 Nm
- Quantity: 1 on the left and right side
- Lifter
- Clip in on the crossmember
- Check the lifter adjusting nut for ease of movement
- Rotate the adjusting nut all the way down but do not tighten it.
- Bolt
- 20 Nm
- Bolt
- 3 Nm
- Support
- For the instrument panel
- Allocation. Refer to the Parts Information.
- Crossmember
- For the instrument panel
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .
- Bolt
- 4 Nm
- For A/C unit
- Quantity: 3
- Support
- For the instrument panel
- Removing and installing. Refer to INSTRUMENT PANEL SUPPORT, REMOVING AND INSTALLING .
- Quantity: 2
- Bolt
- Tightening specification. Refer to -item ) Bolt.
- Bolt
- 20 Nm
- Bolt
- 9 Nm
- Quantity: 2
- Securing Bracket
- Only TT Roadster
- Allocation. Refer to the Parts Information.
- Bolt
- 20 Nm
- Bolt
- 9 Nm

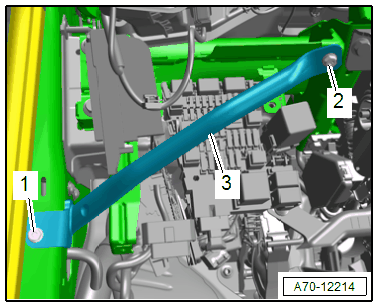

Tightening Specification - A-Pillar/Crossmember Support Rod, TT Roadster
- Bolt - 9 Nm
- Bolt - 9 Nm
- Support Brace
