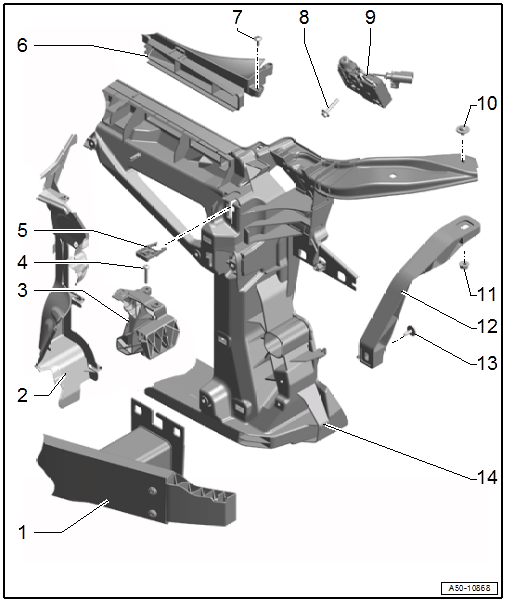

Overview - Lock Carrier, Coupe
WARNING: This page is about a different variant/trim than selected.
- Impact Member
- Overview. Refer to OVERVIEW - IMPACT MEMBER .
- Air Duct
- For the radiator
- Removing and Installing. Refer to RADIATOR AIR DUCT, REMOVING AND INSTALLING .
- Mount
- For the bumper and headlamps
- Removing and Installing. Refer to BUMPER AND HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Adjusting Screw
- Clip
- To adjust the bumper to the body contour
- Air Duct
- For the air filter housing
- Overview. Refer to OVERVIEW - AIR FILTER HOUSING .
- Bolt
- Tightening specification. Refer to OVERVIEW - AIR FILTER HOUSING .
- Bolt
- Tightening specification. Refer to OVERVIEW - RELEASE CABLE
- Quantity: 2
- Latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Nut
- 20 Nm
- Connecting Brace
- Equipped on some models
- To support the lock carrier to the body
- Bolt
- 5 Nm
- Lock Carrier
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
