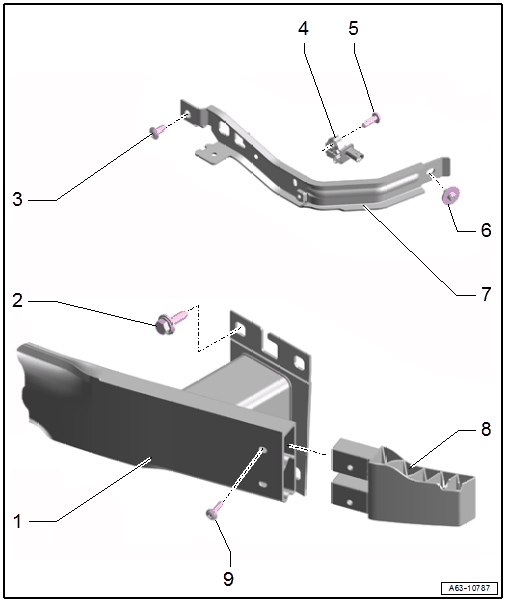

Overview - Impact Member
WARNING: This page is about a different variant/trim than selected.
- Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
- Bolt
- 50 Nm
- Quantity: 4
- Bolt
- 6 Nm
- Front Airbag Crash Sensor
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - AIRBAG CRASH SENSORS .
- Bolt
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - AIRBAG CRASH SENSORS .
- Bolt
- 6 Nm
- Connecting Brace
- Removing and Installing. Refer to CONNECTING BRACE, REMOVING AND INSTALLING .
- Connecting Brace
- Bolt
- 6 Nm
- Quantity: 2
