Vehicle Interior at Front Left (Controls with Instrument Panel Vents, Buttons and Switches)

WARNING: This page is about a different variant/trim than selected.

NOTE:

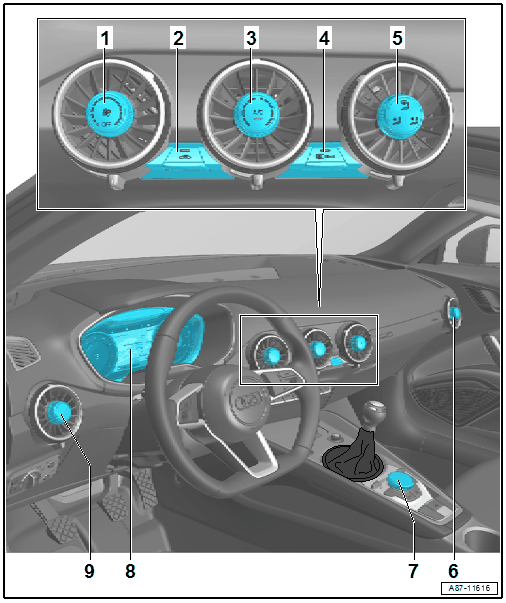

The following illustration shows the buttons and display control heads with symbols as they are installed on a vehicle with a manual climate control system.

Courtesy of AUDI OF AMERICA, LLC

Left Center Instrument Panel Vent (with Front A/C Display Control Head 2 -E775-)
- Instrument Panel Vent, Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING and OVERVIEW - INSTRUMENT PANEL .
- Front A/C Display Control Head 2 -E775-, Removing and Installing. Refer to PRESET KNOB FOR FRESH AIR BLOWER SPEED (AND A/C SYSTEM OPERATION) ON Front A/C Display Control Head 2 -E775-, REMOVING AND INSTALLING .
- Overview. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM and OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH AUTOMATIC CLIMATE CONTROL SYSTEM .
  NOTE:
  There are different versions, depending on the version of the vehicle/A/C system. Refer to the Parts Information.

  The layout for the Front A/C Display Control Head 2 -E775- is different depending on the vehicle version. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM or OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM .
Fresh Air and Recirculating Air Mode Button -E781- or Defrost Button -E782-
- Fresh Air and Recirculating Air Mode Button -E781- /Defrost Button -E782-, Removing and Installing. Refer to FRESH AIR AND Recirculating Air Mode Button -E781- /Defrost Button -E782-, REMOVING AND INSTALLING .
- Overview. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM or OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH AUTOMATIC CLIMATE CONTROL SYSTEM .
  NOTE:
  There are different versions and functions, depending on the equipment and version of the vehicle, as well as the A/C system version. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM for a vehicle with a manual climate control system with a Fresh Air and Recirculating Air Mode Button -E781-. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH AUTOMATIC CLIMATE CONTROL SYSTEM for a vehicle with an automatic climate control system with a Defrost Button -E782-. Refer to the Parts Information.

  The layout is different depending on the vehicle version. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM or OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH AUTOMATIC CLIMATE CONTROL SYSTEM .
Center Instrument Panel Vent (with Front A/C Display Control Head 3 -E776-)
- Instrument Panel Vent, Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING and OVERVIEW - INSTRUMENT PANEL .
- Front A/C Display Control Head 3 -E776-, Removing and Installing. Refer to PRESET KNOB FOR TEMPERATURE (AND A/C SYSTEM OPERATION) ON Front A/C Display Control Head 3 -E776-, REMOVING AND INSTALLING .
- Overview. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM or OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH AUTOMATIC CLIMATE CONTROL SYSTEM .
  NOTE:
  There are different versions, depending on the version of the vehicle/A/C system. Refer to the Parts Information.
Rear Window Defogger Button -E230-
- Rear Window Defogger Button -E230-, Removing and Installing. Refer to Rear Window Defogger Button -E230-, REMOVING AND INSTALLING .
- Overview. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM or OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH AUTOMATIC CLIMATE CONTROL SYSTEM .
  NOTE:
  There are different versions depending on the vehicle equipment. Refer to the Parts Information.
Right Center Instrument Panel Vent (with Front A/C Display Control Head 4 -E777-)
- Instrument Panel Vent, Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING and OVERVIEW - INSTRUMENT PANEL .
- Front A/C Display Control Head 4 -E777-, Removing and Installing. Refer to KNOB FOR AIR DISTRIBUTION ON Front A/C Display Control Head 4 -E777-, REMOVING AND INSTALLING .
- Overview. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM or OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH AUTOMATIC CLIMATE CONTROL SYSTEM .
  NOTE:
  There are different versions, depending on the version of the vehicle/A/C system. Refer to the Parts Information.

  The layout for the Front A/C Display Control Head 2 -E775- is different depending on the vehicle version. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM or OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH AUTOMATIC CLIMATE CONTROL SYSTEM .
Right Instrument Panel Vent (with Cover or Front A/C Display Control Head 5 -E778-)
- Instrument Panel Vent, Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING and OVERVIEW - INSTRUMENT PANEL .
- Cover Front A/C Display Control Head 5 -E778-, Removing and Installing. Refer to RIGHT KNOB FOR SEAT HEATING (AND NECK HEATING) ON Front A/C Display Control Head 5 -E778-, REMOVING AND INSTALLING .
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
  NOTE:
  There are different versions, depending on the vehicle equipment and version. For a vehicle without the optional "seat heating" equipment, it is with a cover. For a vehicle with the optional "seat heating" equipment, it is with a knob for the Front A/C Display Control Head 5 -E778-. For a vehicle with the optional "seat heating with neck heating" equipment, it is with a rotary push button for the Front A/C Display Control Head 5 -E778-. Refer to the Parts Information.

  The layout is different depending on the vehicle version. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH MANUAL CLIMATE CONTROL SYSTEM or OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH AUTOMATIC CLIMATE CONTROL SYSTEM .
Multimedia System Control Head
NOTE:
Certain A/C system functions can be switched off and on using the Multimedia System Control Head -E380- or their function can be changed. The selected or changed functions are shown in the instrument cluster center display. Refer to the Owner's Manual.
Instrument Cluster
NOTE:
Certain A/C system functions can be switched off and on using the Multimedia System Control Head -E380- or their function can be changed. The selected or changed functions are shown in the instrument cluster center display. Refer to the Owner's Manual.
Left Instrument Panel Vent (with Cover or Front A/C Display Control Head 1 -E774-)
- Instrument Panel Vent, Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING and OVERVIEW - INSTRUMENT PANEL .
- Cover/Front A/C Display Control Head 1 -E774-, Removing and Installing. Refer to LEFT KNOB FOR SEAT HEATING (AND NECK HEATING) ON Front A/C Display Control Head 1 -E774-, REMOVING AND INSTALLING .
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
  NOTE:
  There are different versions, depending on the vehicle equipment and version. For a vehicle without the optional "seat heating" equipment, it is with a cover. For a vehicle with the optional "seat heating" equipment, it is with a knob for the Front A/C Display Control Head 1 -E774-. For a vehicle with the optional "seat heating with neck heating" equipment, it is with a rotary push button for the Front A/C Display Control Head 1 -E774-. Refer to the Parts Information.
