Overview - Heater and A/C Unit, Right Side Door Control
WARNING: This page is about a different variant/trim than selected.

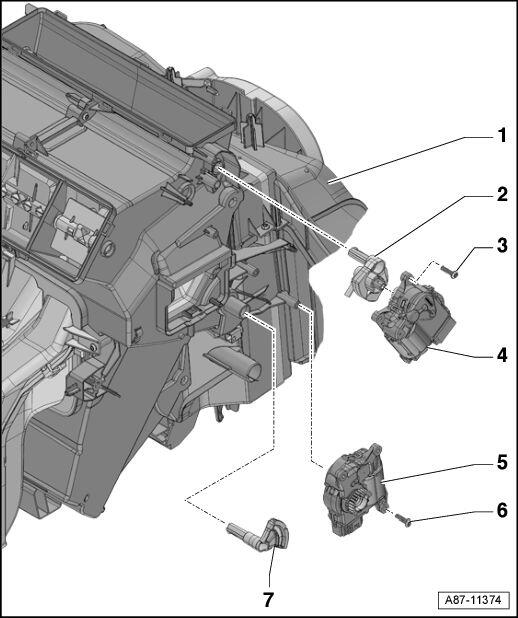

- Heater and A/C Unit
- Overview. Refer to HEATER AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .
- Operating Lever
- For defroster door
- Bolt
- 1 Nm
- Quantity: 2
- Defroster Door Motor -V107-
- With the Defroster Door Motor Position Sensor -G135-
- Only with an automatic climate control system
- To check, use the Vehicle Diagnostic Tester in the"Guided Fault Finding" function. Refer to the appropriate Wiring Diagram.
- Removing and Installing. Refer to Defroster Door Motor -V107- WITH Defroster Door Motor Position Sensor -G135-, REMOVING AND INSTALLING .
- Right Temperature Control Door Motor -V159-
- With Right Temperature Control Door Position Sensor -G221-
- Only with an automatic climate control system
- To check, use the Vehicle Diagnostic Tester in the"Guided Fault Finding" function. Refer to the appropriate Wiring Diagram.
- Removing and Installing. Refer to Right Temperature Control Door Motor -V159- WITH Right Temperature Control Door Position Sensor -G221-, REMOVING AND INSTALLING .NOTE:
Adjusting the temperature is only possible via the Front A/C Display Control Head 3 -E776- on the Audi TT. Both temperature control door motors (the Left Temperature Control Door Motor -V158- and the Right Temperature Control Door Motor -V159-) are activated together over their wide adjustment range by the Climatronic Control Module -J255- via the characteristic curves stored in the Climatronic Control Module -J255-. Use the Vehicle Diagnostic Tester in the"Guided Fault Finding" function. Refer to OVERVIEW - DISPLAY CONTROL HEADS, VEHICLES WITH AUTOMATIC CLIMATE CONTROL SYSTEM .
- Screw
- 1 Nm
- Quantity: 2
- Operating Lever
- For warm air door
