Heater And A/C Unit, Disassembling And Assembling
WARNING: This page is about a different variant/trim than selected.
NOTE:
There are different versions and manufacturers of the heater and A/C units. At the start of production, only "Denso" heater and A/C units are being installed on the Audi TT. Heater and A/C units of other manufacturers may also installed at a later date. Individual components of the different heater and A/C units are similar but not the same. Interchanging components from different manufacturers is not permitted. Refer to the Parts Information.
Characteristics of heater and A/C units of other manufacturers. Refer to HEATER AND A/C UNIT IDENTIFICATION .

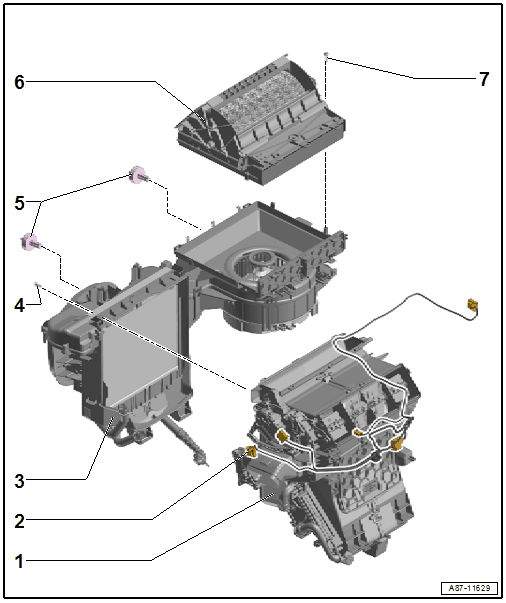

- Air Distribution Housing
- There are different versions. Refer to OVERVIEW - HEATER AND A/C UNIT .
- Differentiating between the various manufacturers. Refer to HEATER AND A/C UNIT IDENTIFICATION .
- Interchanging components made by different manufacturers is not permitted. Refer to HEATER AND A/C UNIT IDENTIFICATION .
- Depending on vehicle equipment level, with or without the Auxiliary Heater Heating Element -Z35-
- Removing and Installing. Refer to AIR DISTRIBUTION HOUSING, REMOVING AND INSTALLING .
- Wiring Harness
- There are different versions. Refer to the Parts Information.
- Evaporator Housing
- Overview. Refer to OVERVIEW - EVAPORATOR HOUSING .
- Screw
- 1 Nm
- Quantity: 3
- Bracket
- For heater and A/C unit
- Removing and Installing. Refer to HEATER AND A/C UNIT BRACKET, REMOVING AND INSTALLING .NOTE:
The brackets remain installed in the vehicle when removing the heater and A/C unit.
- Air Intake Housing
- There are different versions. Refer to the Parts Information.
- Overview. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE HOUSING .
- Bolt
- Tightening specification -item 4-
