Heater And A/C Unit Bracket, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal. Note the following:
- Tightening specification. Refer to HEATER AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .

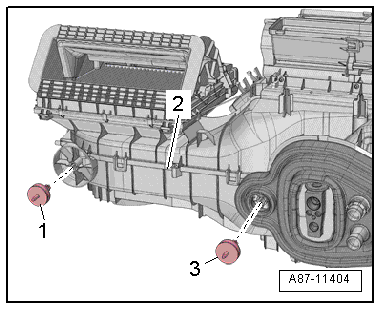

-- Insert the brackets -1 and 3- into the mounts on the heater and A/C unit -2- and bring the A/C unit into the installation position.
-- Install the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
-- Tighten the nut on the brackets.
-- Install the remaining components.
-- Check the DTC memory and erase any displayed entries using the Vehicle Diagnostic Tester in the"Guided Fault Finding" function.
-- Check the heating and A/C system function.
