Overview - Coolant Pipes

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Engine-Side Coolant Pipes

Refer to OVERVIEW - COOLANT PIPES .

Body Side Coolant Pipes

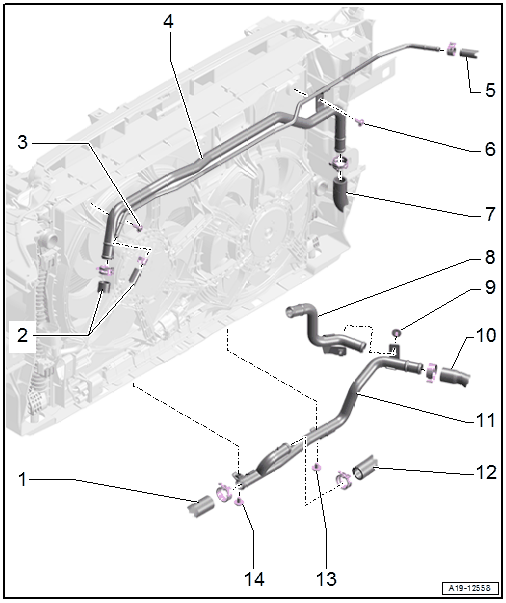

Fig 1: Coolant Pipes Exploded View
GWWA19-12558Courtesy of AUDI OF AMERICA, LLC
  1. Coolant Hose
  2. Coolant Hoses
  3. Bolt
    • 6 Nm
  4. Coolant Pipes on the Fan Shroud
  5. Coolant Hose
  6. Bolt
    • 6 Nm
  7. Coolant Hose
  8. Coolant Pipe
  9. Bolt
    • 8 Nm
  10. Coolant Hose
  11. Coolant Pipe to Lock Carrier
  12. Coolant Hose
  13. Bolt
    • 8 Nm
  14. Bolt
    • 8 Nm
