Overview - Coolant Pipes
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

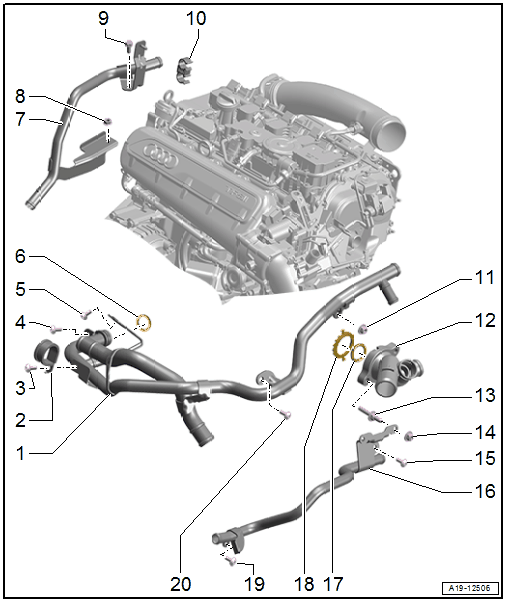

Engine-Side Coolant Pipes
- Front Coolant Pipes
- Removing and installing. Refer to FRONT COOLANT PIPES, REMOVING AND INSTALLING .
- Clamp
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- O-Ring
- Replace after removing.
- Right Coolant Pipe
- Removing and installing. Refer to RIGHT COOLANT PIPE, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Bolt
- 8 Nm
- Bracket
- Nut
- 9 Nm
- Coolant Connection
- Double Bolt
- 9 Nm
- Nut
- 8 Nm
- Bolt
- 8 Nm
- Left Coolant Pipe
- Removing and installing. Refer to LEFT COOLANT PIPE, REMOVING AND INSTALLING .
- Seal
- Replace after removing.
- Support Ring
- Replace after removing.
- Bolt
- 9 Nm
- Bolt
- 9 Nm
Coolant Pipe on Transmission - Tightening Specifications
- Nut - 9 Nm
- Bolt - 9 Nm
Body Side Coolant Pipes
Refer to OVERVIEW - COOLANT PIPES .
