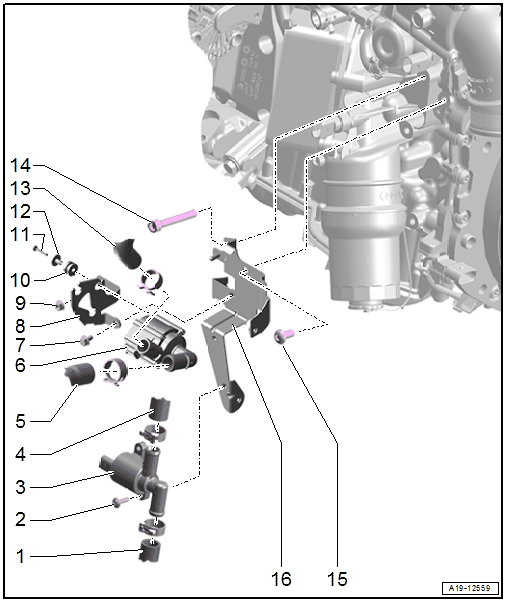

Overview - Electric Coolant Pump
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Hose
- Bolt
- 8 Nm
- Cooling Circuit Solenoid Valve -N492-
- Removing and installing. Refer to COOLANT VALVES, REMOVING AND INSTALLING .
- Coolant Hose
- Coolant Hose
- After-Run Coolant Pump -V51-
- Removing and installing. Refer to ELECTRIC COOLANT PUMP, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Bracket
- Nut
- 8 Nm
- Grommet
- Bolt
- 1.5 Nm
- Spacer Sleeve
- Coolant Hose
- Bolt
- Tightening specification -item 12 .
- Bolt
- 8 Nm
- Bracket

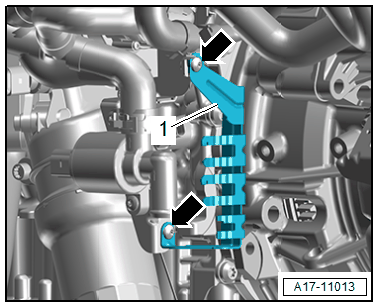

Bracket for Connectors - Tightening Specification
-- Tighten the bolts -arrows- to 9 Nm.
