Lower Timing Chain Cover, Removing And Installing: Installing

Fig 1: Locating Alignment Sleeves

Courtesy of AUDI OF AMERICA, LLC

• Replace seals, sealing rings and O-rings after removing.

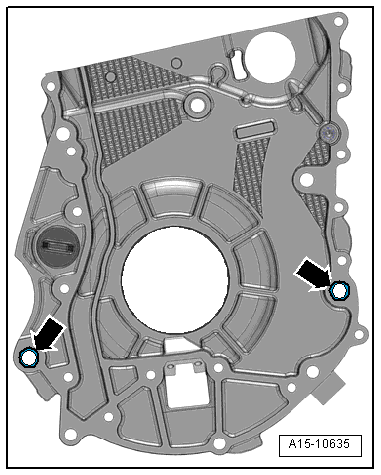

-- Drive back the alignment sleeves -arrows- into the lower timing chain cover, until they no longer project over the sealing surface.

Fig 2: Cleaning Sealing Surfaces

Courtesy of AUDI OF AMERICA, LLC

-- Remove any sealant residue still on the lower timing chain cover -1-, cylinder block and oil pan upper section using, for example, a rotating plastic brush.

-- Clean any oil or grease off the sealing surfaces.

Fig 3: Identifying Cylinder Head Gasket Protrusion

Courtesy of AUDI OF AMERICA, LLC

• A kinked cylinder head gasket must be replaced.

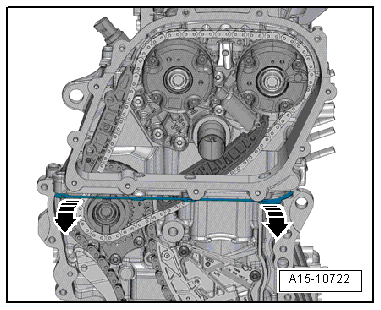

-- Bend the end of the cylinder head gasket downward slightly in direction of -arrows- only until the upper sealing surface of the gasket and cylinder head can also be cleaned.

-- Clean any oil and grease off the upper and lower cylinder head gasket.

• Be sure to check the expiration date of the sealant.
  Fig 4: Cut Tube Nozzle At Front Marking

  Courtesy of AUDI OF AMERICA, LLC

-- Cut the tube nozzle at the front marking (nozzle diameter: about 2.5 mm).

-- Apply a thin coat of sealant on the sealing surface of the upper and lower cylinder head gaskets. To do so, slightly bend the cylinder head gasket downward again in direction of -arrows-.

Fig 5: Identifying Cylinder Head Gasket Protrusion

Courtesy of AUDI OF AMERICA, LLC

-- Use a flat object such as a feeler gauge to coat the surface between the cylinder head and gasket.

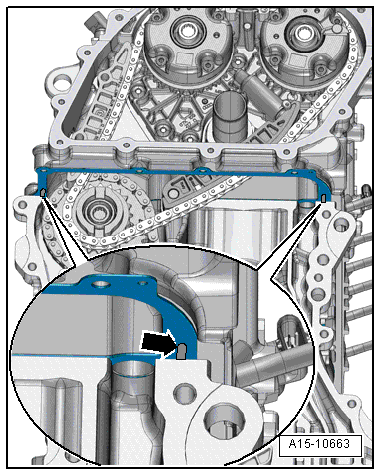

-- Apply a thin sealant bead on the edge between the cylinder block and cylinder head gasket and cylinder head gasket -arrow-.

Fig 6: Identifying Cylinder Head Gasket Holes

Courtesy of AUDI OF AMERICA, LLC

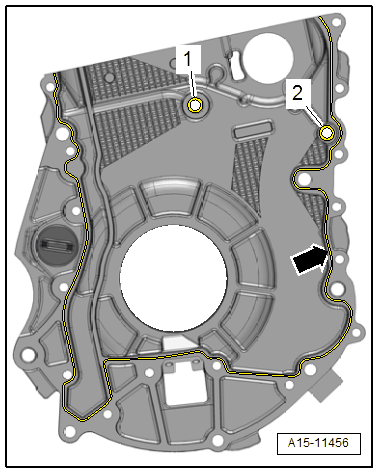

-- Insert the sealing sleeve -1- and O-ring -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Apply a sealant bead -arrow- to the clean sealing surface of the lower timing chain cover.

• Sealant bead thickness: 3.0 mm
• It is necessary to install the lower timing chain cover within five minutes after applying the sealant.

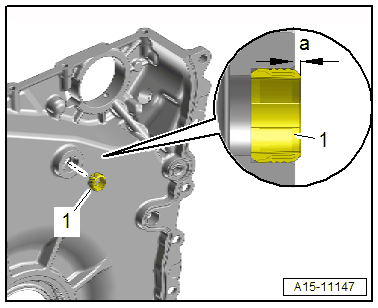

• The sealing sleeve must project the dimension -a- out of the contour of the lower timing chain cover.

  Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = minimum 0.6 mm.

-- Position the lower timing chain cover, guiding it at an angle from below to the sealing surface on the cylinder block and cylinder head.

-- When positioning, make sure that the cylinder head gasket is not damaged.

-- First insert the lower timing chain cover screws by hand all the way.

-- Drive the alignment sleeves from the respective lower timing chain cover all the way into the cylinder block.

-- Tighten the bolts for the lower timing chain cover.

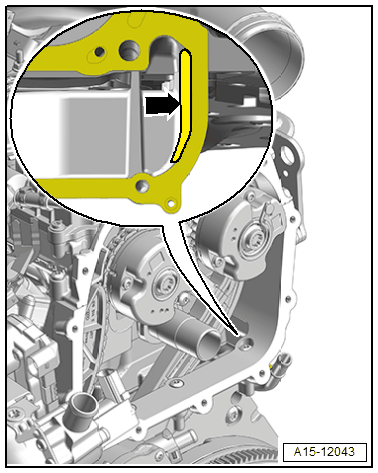

-- After installing apply a sealant bead -arrow- from the top inward in the inner seam on the cylinder head gasket.

Courtesy of AUDI OF AMERICA, LLC

Further installation is performed in reverse order of removal, while noting the following:

-- Install the Engine Speed Sensor -G28-. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .

-- Install the brake booster vacuum pump. Refer to VACUUM PUMP, REMOVING AND INSTALLING .

-- Install the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Bring the : T40299  into the installation position and tighten, and slightly tension the : 10-222A/11  front left of the Extractor.

-- Install the crankshaft seal on the transmission side. Refer to UPPER TIMING CHAIN COVER SEAL, REPLACING .

-- Install the flywheel. Refer to FLYWHEEL, REMOVING AND INSTALLING .
