Upper Timing Chain Cover Seal, Replacing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Seal Installer - Drive Axle: VW195
Press Piece - 60mm: VW415A
Camshaft Installer Kit - Sleeve: 3241/4

Procedure

-- Remove the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

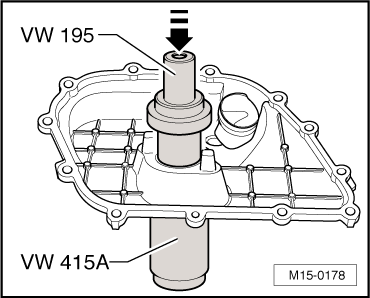

-- Drive out the seal with the : VW195 in direction of -arrow-.

Fig 1: Driving Out Sealing Ring

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the upper timing chain cover is free of any sealant residue and support it with molded tabs -arrows- on a secure surface and press in the new seal all the way using the : 3241/4 .

Fig 2: Driving In Seal

Courtesy of AUDI OF AMERICA, LLC

-- Install the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .
