Overview - Cylinder Head

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

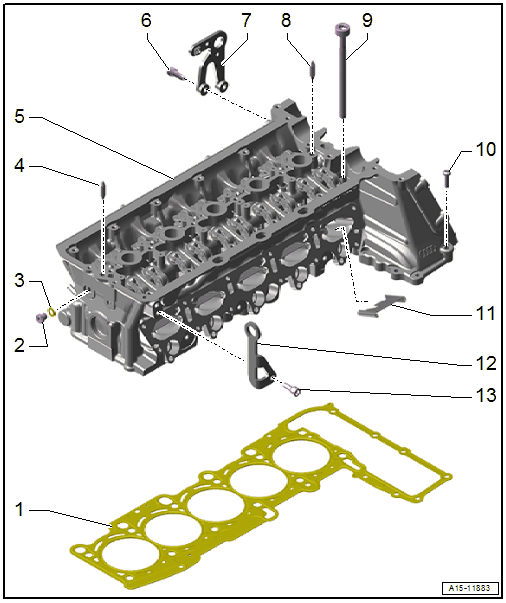

Fig 1: Exploded View Of Cylinder Head

Courtesy of AUDI OF AMERICA, LLC

Cylinder Head Gasket
- Perform the adaptation after replacing using the Vehicle Diagnostic Tester 01 - Engine electronics, functions , 01 - Chain length diagnostic adaptation
- Replacing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Note the installation position: the part number faces the cylinder head
- Install with sealant. Refer to the Parts Information.
Plug
- 15 Nm
Seal
- Replace after removing.
Alignment Pin
Cylinder Head
- Removing and Installing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Must rest on the alignment sleeves
- Checking for distortion. Refer to Fig 3.
- Cylinder Head Reworking Dimension. Refer to Fig 4
- Only replace the cylinder head and camshaft housing together
- Change the coolant and engine oil after replacing
- Perform the adaptation after removing or replacing using the Vehicle Diagnostic Tester 01 - Engine electronics, functions , 01 - Chain length diagnostic adaptation
Bolt
- 20 Nm
Engine Lifting Eye
Alignment Pin
Bolt
- Replace after removing.
- Loosening in the opposite sequence. Refer to Removing - Loosen and remove the cylinder head bolts in the sequence -19 to 1-. .
- Tightening specification and sequence. Refer to Fig 2.
Bolt
- Replace after removing.
- Loosening in the opposite sequence. Refer to Removing - Loosen and remove the cylinder head bolts in the sequence -19 to 1-. .
- Tightening specification and sequence. Refer to Fig 2.
Partition Plate
Engine Lifting Eye
Bolt
- 20 Nm

Cylinder Head - Tightening Specifications and Sequence

Fig 2: Cylinder Head - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Replace the bolts that were tightened with an additional turn after removing them.

-- Tighten the bolts in the steps shown in the sequence:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 to 12-	60 Nm
2.	-1 to 12-	180° additional turn
3.	-13 to 19-	8 Nm
4.	-13 to 19-	90° additional turn

Cylinder Head, Checking for Distortion

Fig 3: Check Cylinder Head For Distortions

Courtesy of AUDI OF AMERICA, LLC

-- Check the cylinder head at several locations for distortion using a : VAS6075 and a feeler gauge.

Maximum permissible distortion: 0.04 mm.

Cylinder Head Reworking Dimension

Fig 4: Cylinder Head Refacing Dimension

Courtesy of AUDI OF AMERICA, LLC

Resurfacing cylinder head (face lapping) is only permissible to minimum dimension -a-.

Minimum dimension -a- = 139.30 mm.
